購買 LVR100S與BYCHPS
購買即有保證

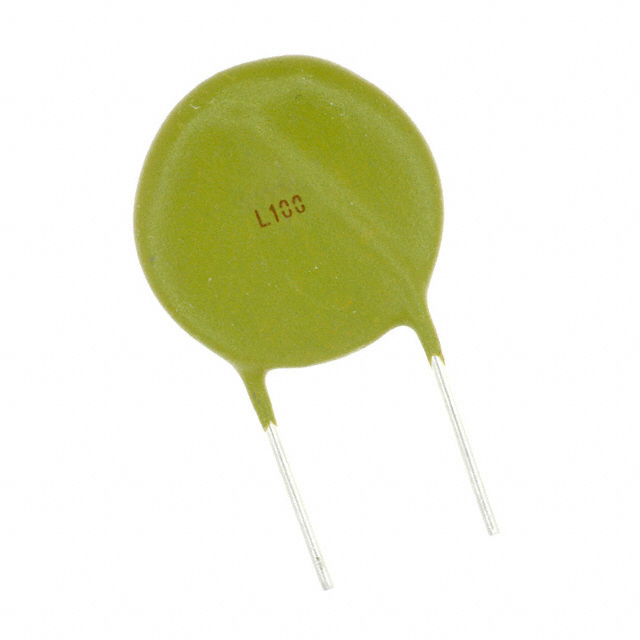

LVR100S
- 型號:
- LVR100S
- 製造商:
- Littelfuse
- 描述:
- POLYSWITCH PTC RESET 240V 1.00A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16439 Pieces
簡單介紹
BYCHIPS是 LVR100S的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的LVR100S購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 240V (265V Int) |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 21s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.740" Dia x 0.200" W (18.70mm x 5.10mm) |
| 系列: | PolySwitch®, LVR |
| 電阻 - 跳閘（R1）（最大）: | 580 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 218 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | RF0628-000 |
| 工作溫度: | -20°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | LVR100S |
| 引線間距: | 0.400" (10.15mm) |
| 高度 - 座高（最大）: | 0.960" (24.40mm) |
| 展開說明: | PTC Resettable Fuse 240V (265V Int) Ih Through Hole Radial, Disc |
| 描述: | POLYSWITCH PTC RESET 240V 1.00A |
| 電流 - 跳閘（It）: | 2A |
| 電流 - 最大: | 10A |
| 電流 - 維持（Ih）（最大值）: | 1A |
| 認證: | CQC, CSA, TUV, UL |
| Email: | [email protected] |
LVR100S的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
MF-LR600S | Bourns Inc. | FUSE RESETTABLE LOW RESISTANCE | 在線詢價 |
 |
LVR100S-240 | Littelfuse Inc. | POLYSWITCH PTC RESET 240V 1A | 在線詢價 |
 |
0ZCF0030FF2C | Bel Fuse Inc. | PTC RESETTABLE 60V 300MA 2920 | 在線詢價 |
 |
0ZCC0260FF2C | Bel Fuse Inc. | PTC RESTTBLE 2.6A 6V CHIP 1812 | 在線詢價 |
 |
RTE135-2 | Littelfuse Inc. | POLYSWITCH RTE SERIES 1.35A HOLD | 在線詢價 |
 |
HVR250P120UF | Littelfuse Inc. | FUSE RESETTABLE 120MA 60V RADIAL | 在線詢價 |
 |
RL3006-50-60-25-PT4 | Amphenol Advanced Sensors | THERMISTOR PTC 25V 50 OHM | 在線詢價 |
 |
AGRF700 | Littelfuse Inc. | POLYSWITCH PTC RESET 7A HOLD | 在線詢價 |
|
LR4-380LF | Littelfuse Inc. | POLYSWITCH PTC RESET 3.8A STRAP | 在線詢價 |
 |
TRF250-120T-2 | Littelfuse Inc. | POLYSWITCH PTC RESET .12A | 在線詢價 |
