購買 LQM21FN4R7N00L與BYCHPS
購買即有保證

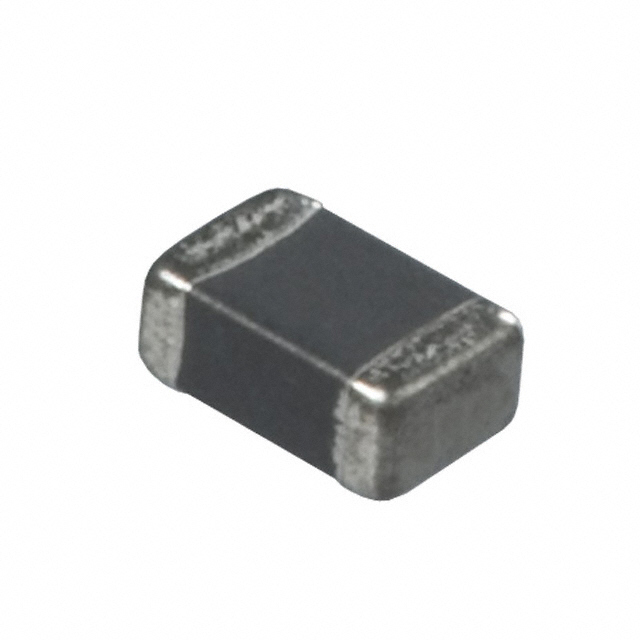

LQM21FN4R7N00L
- 型號:
- LQM21FN4R7N00L
- 描述:
- FIXED IND 4.7UH 80MA 300 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14176 Pieces
簡單介紹
BYCHIPS是 LQM21FN4R7N00L的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的LQM21FN4R7N00L購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Multilayer |
|---|---|
| 公差: | ±30% |
| 供應商設備封裝: | 0805 (2012 Metric) |
| 尺寸/尺寸: | 0.079" L x 0.050" W (2.00mm x 1.25mm) |
| 屏蔽: | Shielded |
| 系列: | LQM21 |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 0805 (2012 Metric) |
| 其他名稱: | 490-6684-2 LQM21FN4R7N00L-ND Q4300888G |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | LQM21FN4R7N00L |
| 電感: | 4.7µH |
| 高度 - 座高（最大）: | 0.041" (1.05mm) |
| 頻率 - 測試: | 1MHz |
| 頻率 - 自諧振: | 25MHz |
| 展開說明: | 4.7µH Shielded Multilayer Inductor 80mA 390 mOhm Max 0805 (2012 Metric) |
| 描述: | FIXED IND 4.7UH 80MA 300 MOHM |
| 直流電阻（DCR）: | 390 mOhm Max |
| 目前評級: | 80mA |
| 電流 - 飽和: | 80mA |
| Email: | [email protected] |
