購買 IRF1405ZL-7PPBF與BYCHPS
購買即有保證

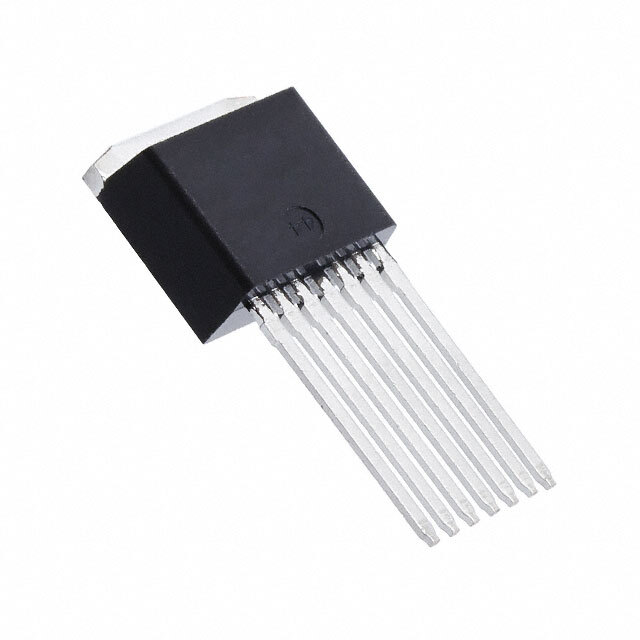

IRF1405ZL-7PPBF
- 型號:
- IRF1405ZL-7PPBF
- 描述:
- MOSFET N-CH 55V 150A TO263CA-7
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15206 Pieces
簡單介紹
BYCHIPS是 IRF1405ZL-7PPBF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRF1405ZL-7PPBF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 4V @ 150µA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | TO-263CA-7 |
| 系列: | HEXFET® |
| RDS（ON）（最大值）@標識，柵極電壓: | 4.9 mOhm @ 88A, 10V |
| 功率耗散（最大）: | 230W (Tc) |
| 封装: | Tube |
| 封裝/箱體: | TO-263-7 (Straight Leads) |
| 其他名稱: | SP001563240 |
| 工作溫度: | -55°C ~ 175°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | IRF1405ZL-7PPBF |
| 輸入電容（Ciss）（Max）@ Vds: | 5360pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 230nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 55V 120A (Tc) 230W (Tc) Through Hole TO-263CA-7 |
| 漏極至源極電壓（Vdss）: | 55V |
| 描述: | MOSFET N-CH 55V 150A TO263CA-7 |
| 電流 - 25°C連續排水（Id）: | 120A (Tc) |
| Email: | [email protected] |
