購買 GPA042A100L-ND與BYCHPS
購買即有保證

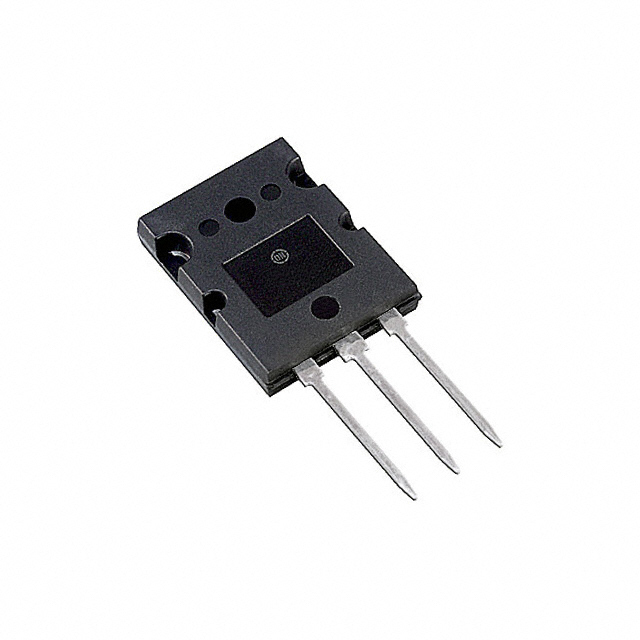

GPA042A100L-ND
- 型號:
- GPA042A100L-ND
- 描述:
- IGBT 1000V 60A 463W TO264
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13453 Pieces
簡單介紹
BYCHIPS是 GPA042A100L-ND的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的GPA042A100L-ND購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 1000V |
|---|---|
| 的VCE（on）（最大）@ VGE，IC: | 2.9V @ 15V, 60A |
| 測試條件: | 600V, 60A, 50 Ohm, 15V |
| Td（開/關）@ 25°C: | 230ns/1480ns |
| 開關能量: | 13.1mJ (on), 6.3mJ (off) |
| 供應商設備封裝: | TO-264 |
| 系列: | - |
| 反向恢復時間（trr）: | 465ns |
| 功率 - 最大: | 463W |
| 封装: | Tube |
| 封裝/箱體: | TO-264-3, TO-264AA |
| 其他名稱: | 1560-1225-1 1560-1225-1-ND |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | GPA042A100L-ND |
| 輸入類型: | Standard |
| IGBT類型: | NPT and Trench |
| 柵極電荷: | 405nC |
| 展開說明: | IGBT NPT and Trench 1000V 60A 463W Through Hole TO-264 |
| 描述: | IGBT 1000V 60A 463W TO264 |
| 電流 - 集電極脈衝（ICM）: | 120A |
| 電流 - 集電極（Ic）（最大）: | 60A |
| Email: | [email protected] |
