購買 G8QN-1C4 DC12與BYCHPS
購買即有保證

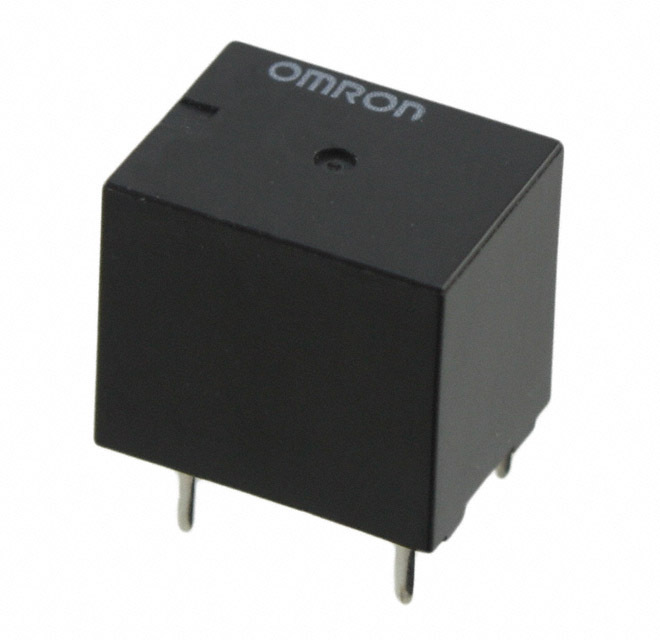

G8QN-1C4 DC12
- 型號:
- G8QN-1C4 DC12
- 製造商:
- Omron
- 描述:
- RELAY AUTOMOTIVE SPDT 30A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15408 Pieces
簡單介紹
BYCHIPS是 G8QN-1C4 DC12的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G8QN-1C4 DC12購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 6.6 VDC |
|---|---|
| 關閉電壓（最小）: | 0.6 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 16VDC - Max |
| 系列: | G8QN |
| 發布時間: | 5ms |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 其他名稱: | G6S 1068B G8QN-1C4-DC12 G8QN1C412DC G8QN1C4DC12 G8QN1C4DC12SK3 Z2696 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 10ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | G8QN-1C4 DC12 |
| 特徵: | Sealed - Fully |
| 展開說明: | Automotive Relay SPDT (1 Form C) 12VDC Coil Through Hole |
| 描述: | RELAY AUTOMOTIVE SPDT 30A 12V |
| 觸點額定值（電流）: | 30A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 210 Ohms |
| 線圈功率: | 685 mW |
| Email: | [email protected] |
