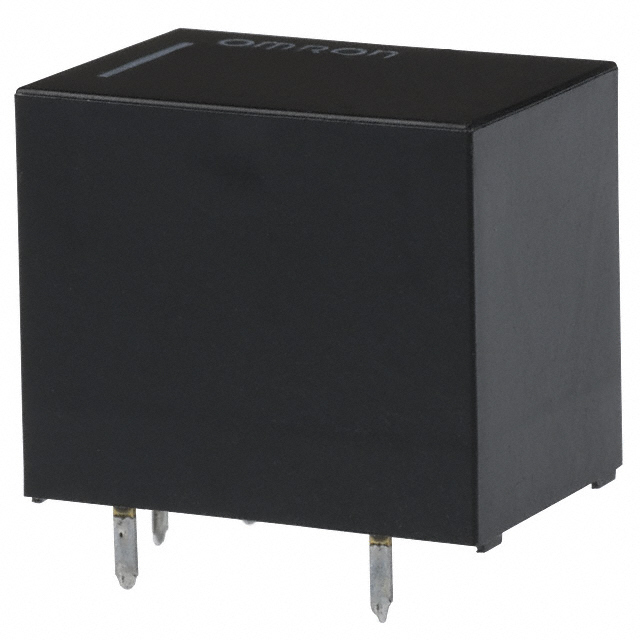

G5LE-1 DC48
- 型號:
- G5LE-1 DC48
- 製造商:
- Omron
- 描述:
- RELAY GEN PURPOSE SPDT 10A 48V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14605 Pieces
- 數據表:
- G5LE-1 DC48.pdf
簡單介紹
BYCHIPS是 G5LE-1 DC48的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G5LE-1 DC48購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 36 VDC |
|---|---|
| 關閉電壓（最小）: | 4.8 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 250VAC, 125VDC - Max |
| 系列: | G5LE |
| 發布時間: | 5ms |
| 繼電器類型: | General Purpose |
| 封装: | Tray |
| 其他名稱: | G5LE-1-DC48 G5LE148DC G5LE1DC48 G5LN8025E |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 10ms |
| 安裝類型: | Through Hole |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | G5LE-1 DC48 |
| 特徵: | Insulation - Class B, Sealed - Flux Protection |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPDT 10A 48V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 48VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 5.76 kOhms |
| 線圈功率: | 400 mW |
| 線圈電流: | 8.3mA |
| Email: | [email protected] |
