購買 G4B-112T1-FD-C-USRP AC120與BYCHPS
購買即有保證

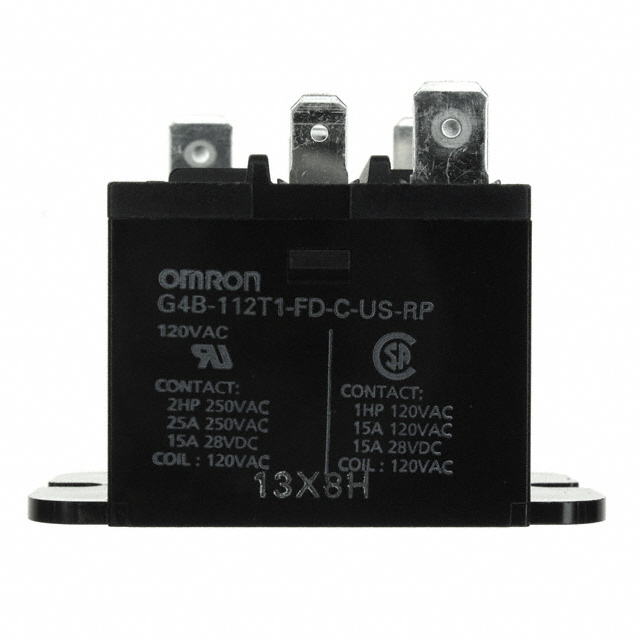

G4B-112T1-FD-C-USRP AC120
- 型號:
- G4B-112T1-FD-C-USRP AC120
- 製造商:
- Omron
- 描述:
- RELAY GEN PURPOSE SPDT 25A 120V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12323 Pieces
簡單介紹
BYCHIPS是 G4B-112T1-FD-C-USRP AC120的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G4B-112T1-FD-C-USRP AC120購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 96 VAC |
|---|---|
| 關閉電壓（最小）: | 36 VAC |
| 端接類型: | Quick Connect - 0.187"/0.250" |
| 切換電壓: | 250VAC, 125VDC - Max |
| 系列: | G4B |
| 發布時間: | 20ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | G4B-112T1-FD-C-USRPAC120 G4B-112T1-FD-C-USRPAC120-ND G4B112T1FDCUSRPAC120 G4B112T1FDCUSRPAC120WWG Z2872 |
| 工作溫度: | -10°C ~ 55°C |
| 操作時間: | 20ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | G4B-112T1-FD-C-USRP AC120 |
| 特徵: | - |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE SPDT 25A 120V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | Silver Indium Tin (AgInSn) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 120VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | - |
| 線圈功率: | 1.3 VA |
| 線圈電流: | 10.8mA |
| Email: | [email protected] |
