購買 FRD12015與BYCHPS
購買即有保證

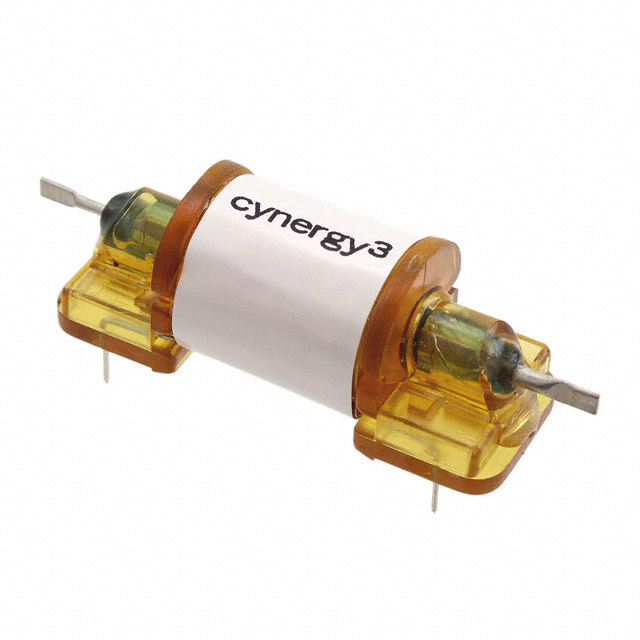

FRD12015
- 型號:
- FRD12015
- 製造商:
- Cynergy3
- 描述:
- RELAY REED RF SPST-NO 1A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19150 Pieces
- 數據表:
- FRD12015.pdf
簡單介紹
BYCHIPS是 FRD12015的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FRD12015購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 15 VDC |
|---|---|
| 關閉電壓（最小）: | 2 VDC |
| 端接類型: | Axial |
| 切換電壓: | 20VDC - Max |
| 系列: | FRD12000 |
| 發布時間: | 1ms |
| 繼電器類型: | Reed |
| 封装: | Bulk |
| 其他名稱: | 725-1188 FRD12015-ND |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 2ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | FRD12015 |
| 特徵: | 30 MHz |
| 展開說明: | Reed Relay SPST-NO (1 Form A) Through Hole |
| 描述: | RELAY REED RF SPST-NO 1A 24V |
| 觸點額定值（電流）: | 1A |
| 觸點材料: | Rhodium (Rh) |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1 kOhms |
| 線圈功率: | 576 mW |
| 線圈電流: | 24mA |
| Email: | [email protected] |
