購買 FN7661-16-M4與BYCHPS
購買即有保證

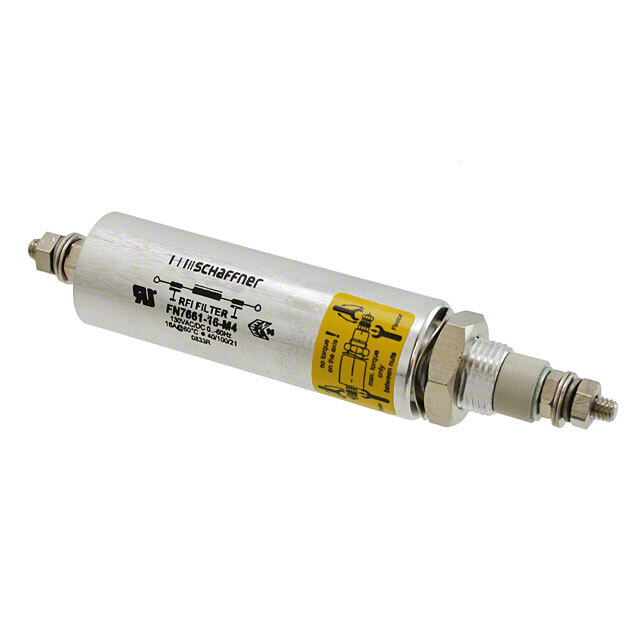

FN7661-16-M4
- 型號:
- FN7661-16-M4
- 描述:
- FILTER LC(PI) 70NH/0.1UF BOLT
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19218 Pieces
- 數據表:
- FN7661-16-M4.pdf
簡單介紹
BYCHIPS是 FN7661-16-M4的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FN7661-16-M4購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 130V |
|---|---|
| 值: | L = 70nH, C = 0.1µF |
| 類型: | Low Pass |
| 技術: | LC (Pi) |
| 尺寸/尺寸: | 0.787" Dia x 2.874" L (20.00mm x 73.00mm) |
| 系列: | FN 766X |
| 電阻 - 通道（歐姆）: | 0.0007 |
| 封装: | Tray |
| 封裝/箱體: | Axial - Threaded Terminals |
| 其他名稱: | 297-908 801804 817-1763 FN7661-16-M4-ND FN766116M4 |
| 工作溫度: | -40°C ~ 100°C |
| 通道數: | 1 |
| 安裝類型: | Bolt Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | FN7661-16-M4 |
| 高度: | - |
| 濾波器階: | 3rd |
| 展開說明: | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 0.1µF 16A Axial - Threaded Terminals |
| ESD保護: | No |
| 描述: | FILTER LC(PI) 70NH/0.1UF BOLT |
| 當前: | 16A |
| 中心/截止頻率: | - |
| 衰減值: | - |
| 應用: | Data Lines for Mobile Devices |
| Email: | [email protected] |
