購買 FN7561-100-M8與BYCHPS
購買即有保證

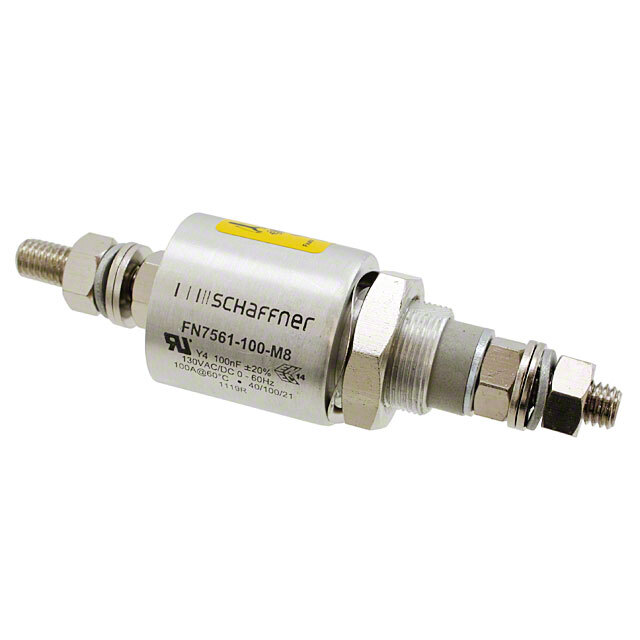

FN7561-100-M8
- 型號:
- FN7561-100-M8
- 描述:
- CAP FEEDTHRU 0.1UF 650V AXIAL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18899 Pieces
簡單介紹
BYCHIPS是 FN7561-100-M8的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FN7561-100-M8購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 650V |
|---|---|
| 公差: | ±20% |
| 螺紋尺寸: | M20x1 |
| 溫度係數: | - |
| 尺寸/尺寸: | 1.260" Dia x 4.449" L (32.00mm x 113.00mm) |
| 系列: | FN 756X |
| 評級: | Y4 |
| 封装: | Tray |
| 封裝/箱體: | Axial - Threaded Terminals |
| 其他名稱: | 297-584 801419 817-1736 FN7561-100-M8-ND FN7561100M8 |
| 工作溫度: | -40°C ~ 100°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | FN7561-100-M8 |
| 插入損耗: | - |
| 高度（最大）: | - |
| 展開說明: | 0.1µF Feed Through Capacitor 650V 100A 0.23 mOhm (Typ) Axial - Threaded Terminals |
| 描述: | CAP FEEDTHRU 0.1UF 650V AXIAL |
| 直流電阻（DCR）（最大值）: | 0.23 mOhm (Typ) |
| 當前: | 100A |
| 電容: | 0.1µF |
| Email: | [email protected] |
