購買 FN7510-10-M3與BYCHPS
購買即有保證

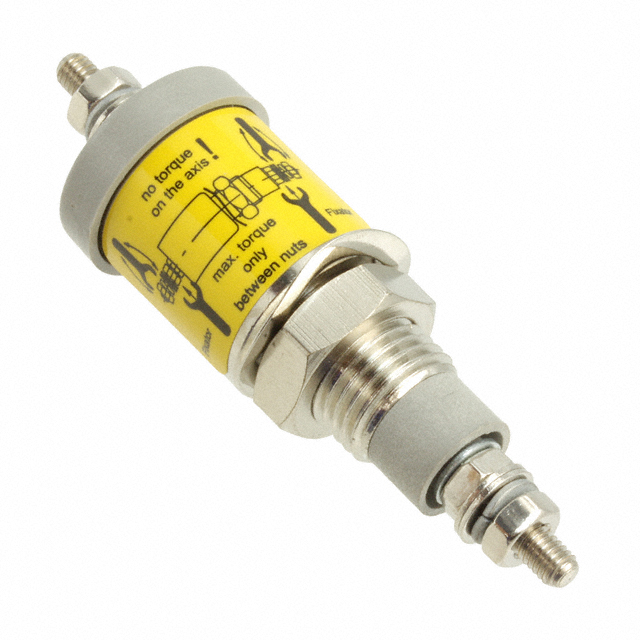

FN7510-10-M3
- 型號:
- FN7510-10-M3
- 描述:
- CAP FEEDTHRU 2200PF 1KV AXIAL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18968 Pieces
- 數據表:
- FN7510-10-M3.pdf
簡單介紹
BYCHIPS是 FN7510-10-M3的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FN7510-10-M3購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 1000V (1kV) |
|---|---|
| 公差: | ±20% |
| 螺紋尺寸: | M10x1 |
| 溫度係數: | - |
| 尺寸/尺寸: | 0.663" Dia x 2.244" L (16.85mm x 57.00mm) |
| 系列: | FN 751X |
| 評級: | Y2 |
| 封装: | Tray |
| 封裝/箱體: | Axial - Threaded Terminals |
| 其他名稱: | 297-857 800022 817-1726 FN7510-10-M3-ND FN751010M3 |
| 工作溫度: | -40°C ~ 100°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | FN7510-10-M3 |
| 插入損耗: | - |
| 高度（最大）: | - |
| 展開說明: | 2200pF Feed Through Capacitor 1000V (1kV) 10A 0.8 mOhm (Typ) Axial - Threaded Terminals |
| 描述: | CAP FEEDTHRU 2200PF 1KV AXIAL |
| 直流電阻（DCR）（最大值）: | 0.8 mOhm (Typ) |
| 當前: | 10A |
| 電容: | 2200pF |
| Email: | [email protected] |
