購買 FDMJ1032C與BYCHPS
購買即有保證

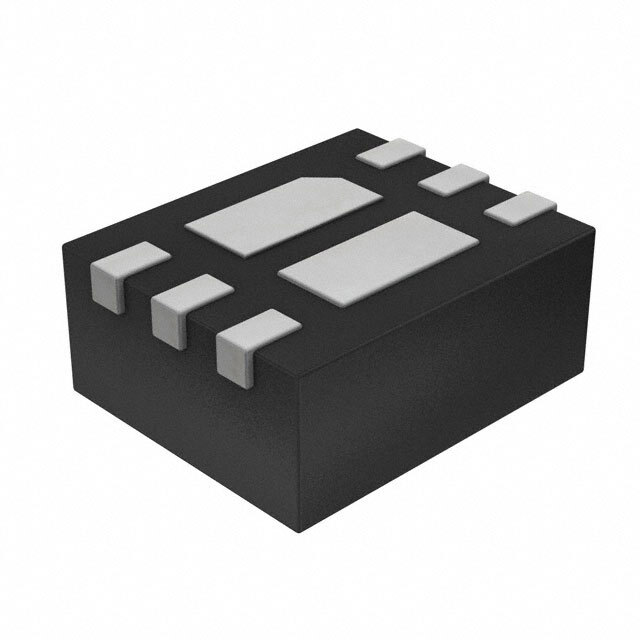

FDMJ1032C
- 型號:
- FDMJ1032C
- 描述:
- MOSFET N/P-CH 20V 3.2A/2.5A SC75
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13004 Pieces
- 數據表:
- FDMJ1032C.pdf
簡單介紹
BYCHIPS是 FDMJ1032C的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FDMJ1032C購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1.5V @ 250µA |
|---|---|
| 供應商設備封裝: | SC-75, MicroFET |
| 系列: | PowerTrench® |
| RDS（ON）（最大值）@標識，柵極電壓: | 90 mOhm @ 3.2A, 4.5V |
| 功率 - 最大: | 800mW |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 6-WFDFN Exposed Pad |
| 其他名稱: | FDMJ1032CTR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | FDMJ1032C |
| 輸入電容（Ciss）（Max）@ Vds: | 270pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 3nC @ 4.5V |
| FET型: | N and P-Channel |
| FET特點: | Logic Level Gate |
| 展開說明: | Mosfet Array N and P-Channel 20V 3.2A, 2.5A 800mW Surface Mount SC-75, MicroFET |
| 漏極至源極電壓（Vdss）: | 20V |
| 描述: | MOSFET N/P-CH 20V 3.2A/2.5A SC75 |
| 電流 - 25°C連續排水（Id）: | 3.2A, 2.5A |
| Email: | [email protected] |
