購買 FDMA6676PZ與BYCHPS
購買即有保證

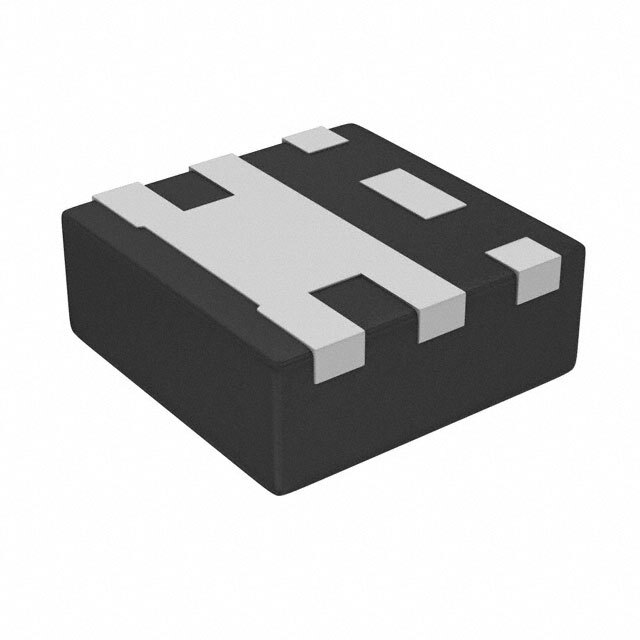

FDMA6676PZ
- 型號:
- FDMA6676PZ
- 描述:
- MOSFET P-CH 30V 11A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19773 Pieces
- 數據表:
- FDMA6676PZ.pdf
簡單介紹
BYCHIPS是 FDMA6676PZ的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FDMA6676PZ購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.6V @ 250µA |
|---|---|
| Vgs（最大）: | ±25V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | 6-MicroFET (2x2) |
| 系列: | PowerTrench® |
| RDS（ON）（最大值）@標識，柵極電壓: | 13.5 mOhm @ 11A, 10V |
| 功率耗散（最大）: | 2.4W (Ta) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 6-PowerWDFN |
| 其他名稱: | FDMA6676PZTR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | FDMA6676PZ |
| 輸入電容（Ciss）（Max）@ Vds: | 2160pF @ 15V |
| 柵極電荷（Qg）（Max）@ Vgs: | 46nC @ 10V |
| FET型: | P-Channel |
| FET特點: | - |
| 展開說明: | P-Channel 30V 11A (Ta) 2.4W (Ta) Surface Mount 6-MicroFET (2x2) |
| 驅動電壓（最大Rds開，最小Rds開）: | 4.5V, 10V |
| 漏極至源極電壓（Vdss）: | 30V |
| 描述: | MOSFET P-CH 30V 11A |
| 電流 - 25°C連續排水（Id）: | 11A (Ta) |
| Email: | [email protected] |
