購買 FDC6301N與BYCHPS
購買即有保證

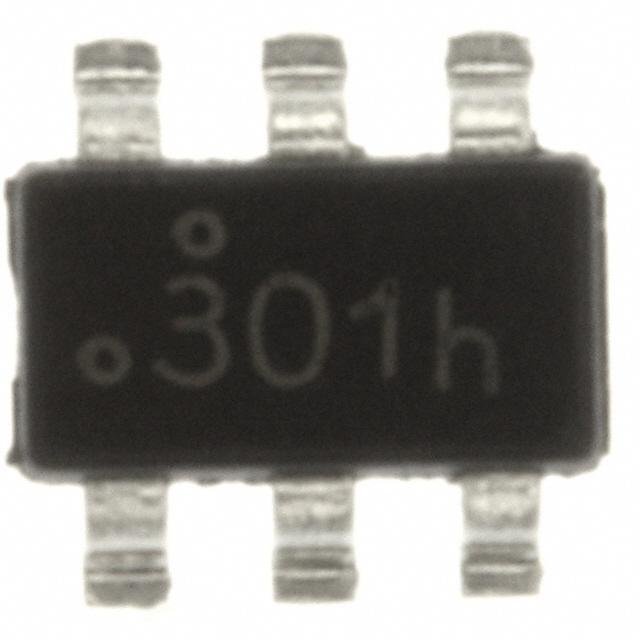

FDC6301N
- 型號:
- FDC6301N
- 描述:
- MOSFET 2N-CH 25V 0.22A SSOT6
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18841 Pieces
- 數據表:
- FDC6301N.pdf
簡單介紹
BYCHIPS是 FDC6301N的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FDC6301N購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1.5V @ 250µA |
|---|---|
| 供應商設備封裝: | SuperSOT™-6 |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 4 Ohm @ 400mA, 4.5V |
| 功率 - 最大: | 700mW |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | SOT-23-6 Thin, TSOT-23-6 |
| 其他名稱: | FDC6301NTR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 9 Weeks |
| 製造商零件編號: | FDC6301N |
| 輸入電容（Ciss）（Max）@ Vds: | 9.5pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 0.7nC @ 4.5V |
| FET型: | 2 N-Channel (Dual) |
| FET特點: | Logic Level Gate |
| 展開說明: | Mosfet Array 2 N-Channel (Dual) 25V 220mA 700mW Surface Mount SuperSOT™-6 |
| 漏極至源極電壓（Vdss）: | 25V |
| 描述: | MOSFET 2N-CH 25V 0.22A SSOT6 |
| 電流 - 25°C連續排水（Id）: | 220mA |
| Email: | [email protected] |
