購買 FCA-125-HX3與BYCHPS
購買即有保證

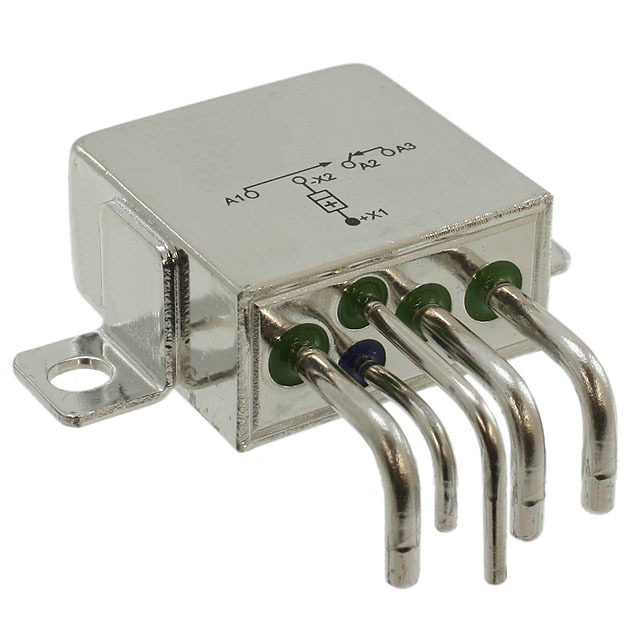

FCA-125-HX3
- 型號:
- FCA-125-HX3
- 描述:
- RELAY GEN PURPOSE SPDT 25A 28V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 17046 Pieces
- 數據表:
- FCA-125-HX3.pdf
簡單介紹
BYCHIPS是 FCA-125-HX3的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FCA-125-HX3購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 1.5 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 115VAC, 28VDC - Max |
| 系列: | FCA, CII |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 8-1617748-7 816177487 A107304 |
| 工作溫度: | -70°C ~ 125°C |
| 操作時間: | 10ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 19 Weeks |
| 製造商零件編號: | FCA-125-HX3 |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 28VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE SPDT 25A 28V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 28VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 320 Ohms |
| 線圈功率: | - |
| Email: | [email protected] |
