購買 EV28-1.0-02-36M與BYCHPS
購買即有保證

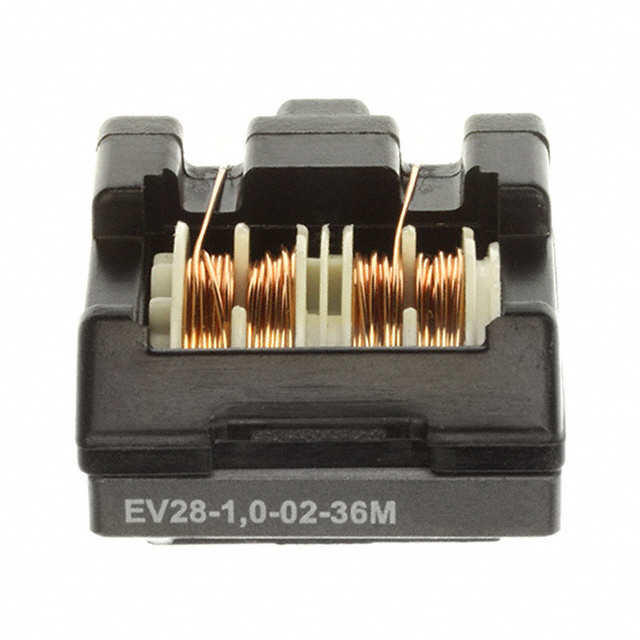

EV28-1.0-02-36M
- 型號:
- EV28-1.0-02-36M
- 描述:
- COMMON MODE CHOKE 36MH 1A 2LN TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12711 Pieces
簡單介紹
BYCHIPS是 EV28-1.0-02-36M的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EV28-1.0-02-36M購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | 250V |
| 尺寸/尺寸: | 1.150" L x 0.827" W (29.20mm x 21.00mm) |
| 系列: | EV |
| 評級: | - |
| 封装: | Tube |
| 封裝/箱體: | Vertical, 4 PC Pin |
| 其他名稱: | 295-508 801061 817-1045 EV28-1,0-02-36M EV28100236M |
| 工作溫度: | -25°C ~ 100°C |
| 行數: | 2 |
| 安裝類型: | Through Hole |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | EV28-1.0-02-36M |
| 電感@頻率: | 36mH @ 400Hz |
| 頻率對應阻抗: | - |
| 高度（最大）: | 1.406" (35.70mm) |
| 過濾器類型: | Power Line |
| 特徵: | - |
| 展開說明: | 36mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 591 mOhm (Typ) |
| 描述: | COMMON MODE CHOKE 36MH 1A 2LN TH |
| 直流電阻（DCR）（最大值）: | 591 mOhm (Typ) |
| 卡厚度（mm）: | 1A |
| 認證: | - |
| Email: | [email protected] |
