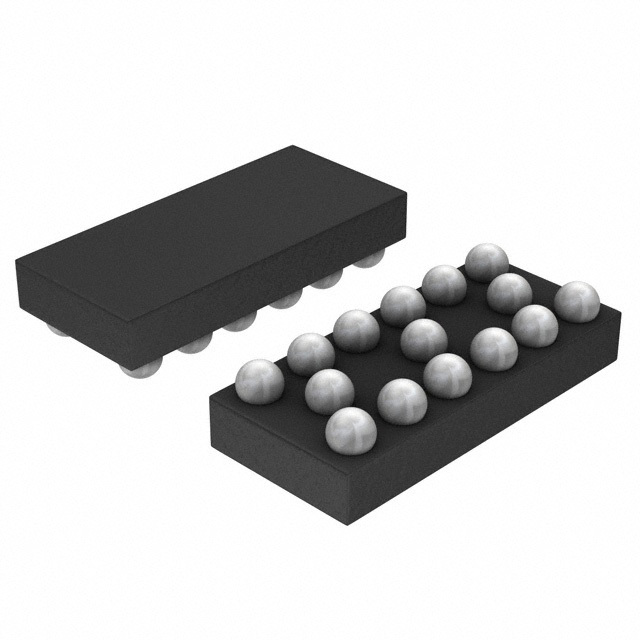

EMIF06-VID01F2
- 型號:
- EMIF06-VID01F2
- 製造商:
- ST
- 描述:
- IC FILTER EMI 6LINE ESD FLIPCHIP
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16155 Pieces
簡單介紹
BYCHIPS是 EMIF06-VID01F2的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EMIF06-VID01F2購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 值: | R = 100 Ohms, C = 16pF (Total) |
|---|---|
| 類型: | Low Pass |
| 技術: | RC (Pi) |
| 尺寸/尺寸: | 0.115" L x 0.051" W (2.92mm x 1.29mm) |
| 系列: | EMIF |
| 電阻 - 通道（歐姆）: | 100 |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 15-WFBGA, FCBGA |
| 其他名稱: | 497-4543-2 |
| 工作溫度: | -40°C ~ 85°C |
| 通道數: | 6 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 7 Weeks |
| 製造商零件編號: | EMIF06-VID01F2 |
| 高度: | 0.028" (0.70mm) |
| 濾波器階: | 2nd |
| 展開說明: | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100 Ohms, C = 16pF (Total) 10mA 15-WFBGA, FCBGA |
| ESD保護: | Yes |
| 描述: | IC FILTER EMI 6LINE ESD FLIPCHIP |
| 當前: | 10mA |
| 中心/截止頻率: | - |
| 衰減值: | 40dB @ 900MHz |
| 應用: | Data Lines for Mobile Devices |
| Email: | [email protected] |
