購買 EMIF06-MSD02N16與BYCHPS
購買即有保證

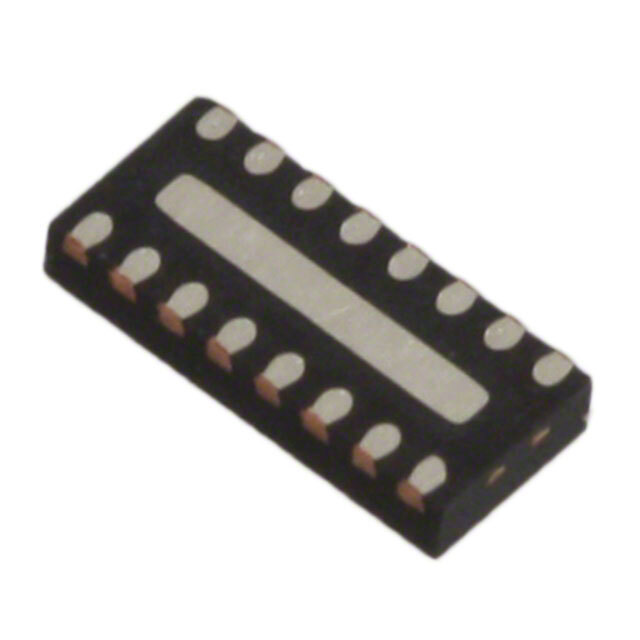

EMIF06-MSD02N16
- 型號:
- EMIF06-MSD02N16
- 製造商:
- ST
- 描述:
- FILTER RC(PI) 45 OHM/20PF SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17515 Pieces
簡單介紹
BYCHIPS是 EMIF06-MSD02N16的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EMIF06-MSD02N16購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | - |
|---|---|
| 值: | R = 45 Ohms, C = 20pF (Total) |
| 類型: | Low Pass |
| 技術: | RC (Pi) |
| 尺寸/尺寸: | 0.138" L x 0.047" W (3.50mm x 1.20mm) |
| 系列: | IPAD™ |
| 電阻 - 通道（歐姆）: | 45 |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 16-UFDFN Exposed Pad |
| 其他名稱: | 497-8751-2 EMIF06MSD02N16 |
| 工作溫度: | -30°C ~ 85°C |
| 通道數: | 6 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 7 Weeks |
| 製造商零件編號: | EMIF06-MSD02N16 |
| 高度: | 0.022" (0.55mm) |
| 濾波器階: | 2nd |
| 展開說明: | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 45 Ohms, C = 20pF (Total) 16-UFDFN Exposed Pad |
| ESD保護: | Yes |
| 描述: | FILTER RC(PI) 45 OHM/20PF SMD |
| 當前: | - |
| 中心/截止頻率: | - |
| 衰減值: | - |
| 應用: | Data Lines for Mobile Devices |
| Email: | [email protected] |
