購買 ELJ-NAR33KF與BYCHPS
購買即有保證

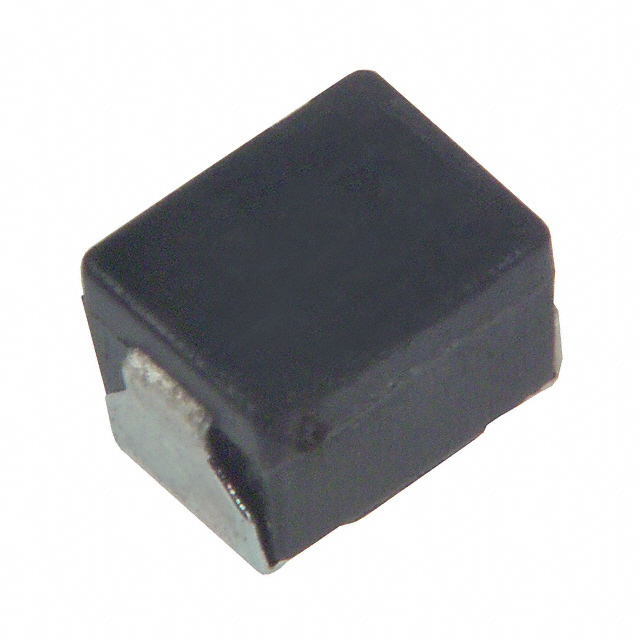

ELJ-NAR33KF
- 型號:
- ELJ-NAR33KF
- 製造商:
- Panasonic
- 描述:
- FIXED IND 330NH 190MA 1.1 OHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14182 Pieces
- 數據表:
- ELJ-NAR33KF.pdf
簡單介紹
BYCHIPS是 ELJ-NAR33KF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ELJ-NAR33KF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±10% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 屏蔽: | Unshielded |
| 系列: | NA |
| 評級: | - |
| Q因子@頻率: | 10 @ 25.2MHz |
| 封装: | Original-Reel® |
| 封裝/箱體: | 1210 (3225 Metric) |
| 其他名稱: | PCD1125DKR |
| 工作溫度: | - |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Non-Magnetic |
| 製造商零件編號: | ELJ-NAR33KF |
| 電感: | 330nH |
| 高度 - 座高（最大）: | 0.094" (2.40mm) |
| 頻率 - 測試: | 1MHz |
| 頻率 - 自諧振: | 220MHz |
| 展開說明: | 330nH Unshielded Wirewound Inductor 190mA 1.1 Ohm Max 1210 (3225 Metric) |
| 描述: | FIXED IND 330NH 190MA 1.1 OHM |
| 直流電阻（DCR）: | 1.1 Ohm Max |
| 目前評級: | 190mA |
| 電流 - 飽和: | - |
| Email: | [email protected] |
