購買 ELF-25C012F與BYCHPS
購買即有保證

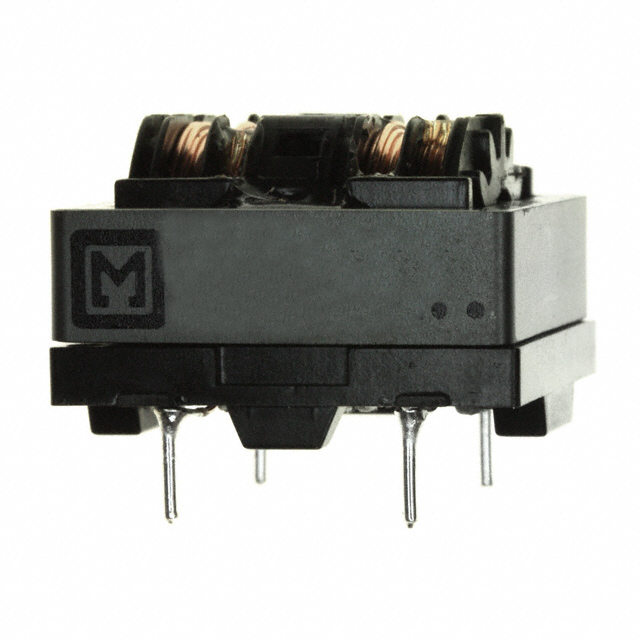

ELF-25C012F
- 型號:
- ELF-25C012F
- 製造商:
- Panasonic
- 描述:
- COMMON MODE CHOKE 1.2A 2LN TH
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 18933 Pieces
- 數據表:
- ELF-25C012F.pdf
簡單介紹
BYCHIPS是 ELF-25C012F的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ELF-25C012F購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | 250V |
| 尺寸/尺寸: | 0.984" L x 0.984" W (25.00mm x 25.00mm) |
| 系列: | C |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Vertical, 4 PC Pin |
| 其他名稱: | ELF25C012F PLK1317 |
| 工作溫度: | -20°C ~ 115°C |
| 行數: | 2 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | ELF-25C012F |
| 電感@頻率: | - |
| 頻率對應阻抗: | - |
| 高度（最大）: | 0.689" (17.50mm) |
| 過濾器類型: | Power Line |
| 特徵: | - |
| 展開說明: | 2 Line Common Mode Choke Through Hole 1.2A DCR 310 mOhm (Typ) |
| 描述: | COMMON MODE CHOKE 1.2A 2LN TH |
| 直流電阻（DCR）（最大值）: | 310 mOhm (Typ) |
| 卡厚度（mm）: | 1.2A |
| 認證: | - |
| Email: | [email protected] |
