購買 ECQ-P1H823GZ與BYCHPS
購買即有保證

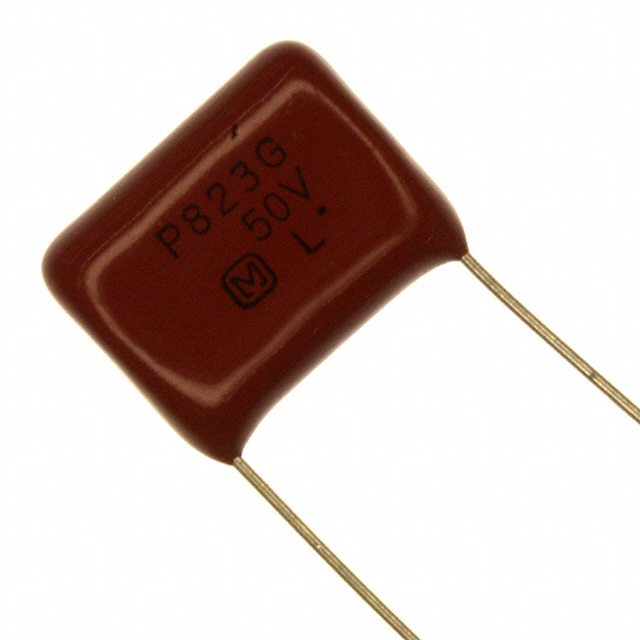

ECQ-P1H823GZ
- 型號:
- ECQ-P1H823GZ
- 製造商:
- Panasonic
- 描述:
- CAP FILM 0.082UF 2% 50VDC RADIAL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16444 Pieces
- 數據表:
- ECQ-P1H823GZ.pdf
簡單介紹
BYCHIPS是 ECQ-P1H823GZ的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ECQ-P1H823GZ購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 50V |
|---|---|
| 額定電壓 - AC: | - |
| 公差: | ±2% |
| 終止: | PC Pins |
| 尺寸/尺寸: | 0.670" L x 0.276" W (17.00mm x 7.00mm) |
| 系列: | ECQ-P(Z) |
| 封装: | Bulk |
| 封裝/箱體: | Radial |
| 其他名稱: | ECQP1H823GZ P3823 |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | ECQ-P1H823GZ |
| 引線間距: | 0.295" (7.50mm) |
| 高度 - 座高（最大）: | 0.748" (19.00mm) |
| 特徵: | - |
| 展開說明: | 0.082µF ±2% Film Capacitor 50V Polypropylene (PP) Radial |
| ESR（等效串聯電阻）: | - |
| 絕緣材料: | Polypropylene (PP) |
| 描述: | CAP FILM 0.082UF 2% 50VDC RADIAL |
| 電容: | 0.082µF |
| 應用: | High Frequency, Switching |
| Email: | [email protected] |
