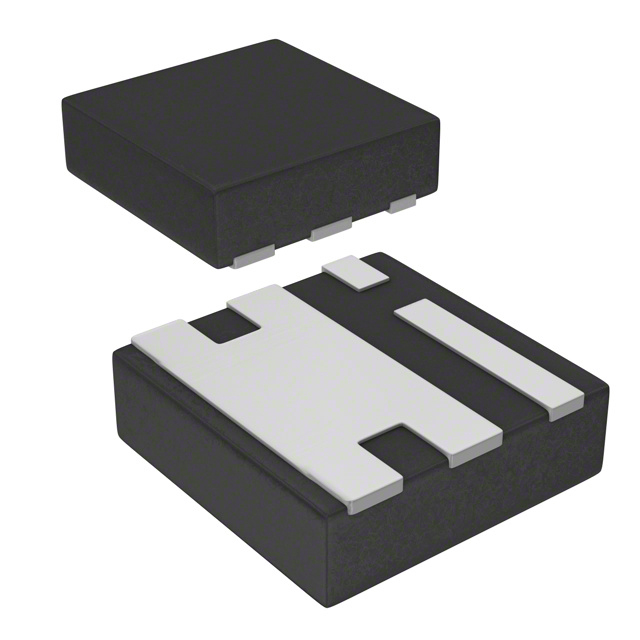

DMP2039UFDE4-7
- 型號:
- DMP2039UFDE4-7
- 描述:
- MOSFET P-CH 25V 7.3A 6DFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16105 Pieces
簡單介紹
BYCHIPS是 DMP2039UFDE4-7的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DMP2039UFDE4-7購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1V @ 250µA |
|---|---|
| Vgs（最大）: | ±8V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | 6-DFN2020 (2x2) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 26 mOhm @ 6.4A, 4.5V |
| 功率耗散（最大）: | 690mW (Ta) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 6-PowerXDFN |
| 其他名稱: | DMP2039UFDE4-7DITR DMP2039UFDE47 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | DMP2039UFDE4-7 |
| 輸入電容（Ciss）（Max）@ Vds: | 2530pF @ 15V |
| 柵極電荷（Qg）（Max）@ Vgs: | 28.2nC @ 4.5V |
| FET型: | P-Channel |
| FET特點: | - |
| 展開說明: | P-Channel 25V 7.3A (Ta) 690mW (Ta) Surface Mount 6-DFN2020 (2x2) |
| 驅動電壓（最大Rds開，最小Rds開）: | 1.8V, 4.5V |
| 漏極至源極電壓（Vdss）: | 25V |
| 描述: | MOSFET P-CH 25V 7.3A 6DFN |
| 電流 - 25°C連續排水（Id）: | 7.3A (Ta) |
