購買 DKIH-3352-1011-NK與BYCHPS
購買即有保證

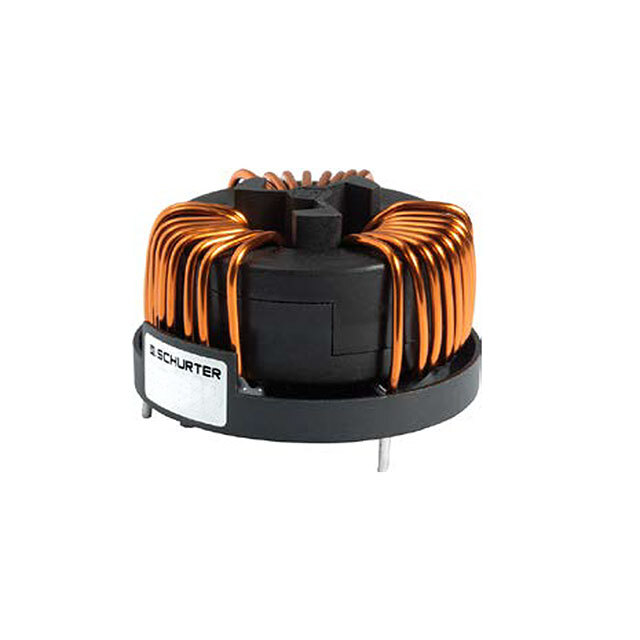

DKIH-3352-1011-NK
- 型號:
- DKIH-3352-1011-NK
- 製造商:
- Schurter
- 描述:
- COMMON MODE CHOKE 10A 3LN TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16222 Pieces
簡單介紹
BYCHIPS是 DKIH-3352-1011-NK的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DKIH-3352-1011-NK購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | 600V |
| 尺寸/尺寸: | 2.087" Dia (53.00mm) |
| 系列: | DKIH |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Horizontal, 6 PC Pin |
| 其他名稱: | 486-3234 |
| 工作溫度: | -40°C ~ 100°C |
| 行數: | 3 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 17 Weeks |
| 製造商零件編號: | DKIH-3352-1011-NK |
| 電感@頻率: | - |
| 頻率對應阻抗: | - |
| 高度（最大）: | 1.220" (31.00mm) |
| 過濾器類型: | - |
| 特徵: | - |
| 展開說明: | 3 Line Common Mode Choke Through Hole 10A DCR 7.5 mOhm |
| 描述: | COMMON MODE CHOKE 10A 3LN TH |
| 直流電阻（DCR）（最大值）: | 7.5 mOhm |
| 卡厚度（mm）: | 10A |
| 認證: | ENEC, UR |
| Email: | [email protected] |
