購買 BSB015N04NX3 G與BYCHPS
購買即有保證

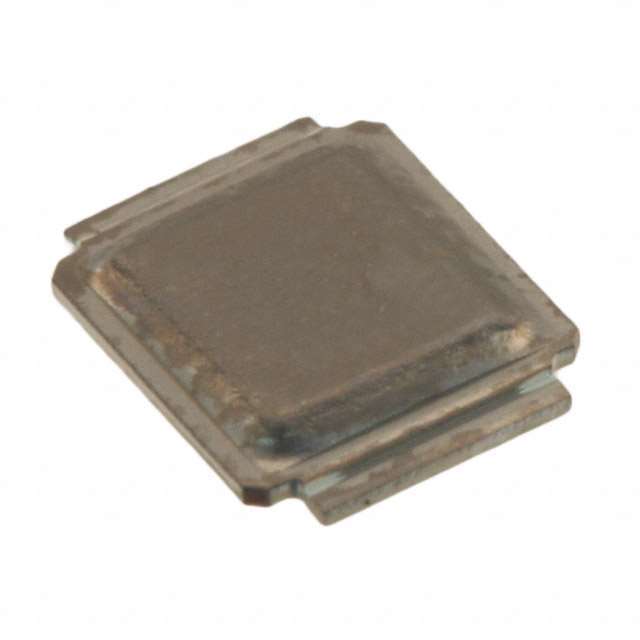

BSB015N04NX3 G
- 型號:
- BSB015N04NX3 G
- 描述:
- MOSFET N-CH 40V 180A 2WDSON
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 20278 Pieces
簡單介紹
BYCHIPS是 BSB015N04NX3 G的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的BSB015N04NX3 G購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 4V @ 250µA |
|---|---|
| Vgs（最大）: | ±20V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | MG-WDSON-2, CanPAK M™ |
| 系列: | OptiMOS™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 1.5 mOhm @ 30A, 10V |
| 功率耗散（最大）: | 2.8W (Ta), 89W (Tc) |
| 封装: | Original-Reel® |
| 封裝/箱體: | 3-WDSON |
| 其他名稱: | BSB015N04NX3 GDKR |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | BSB015N04NX3 G |
| 輸入電容（Ciss）（Max）@ Vds: | 12000pF @ 20V |
| 柵極電荷（Qg）（Max）@ Vgs: | 142nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 40V 36A (Ta), 180A (Tc) 2.8W (Ta), 89W (Tc) Surface Mount MG-WDSON-2, CanPAK M™ |
| 驅動電壓（最大Rds開，最小Rds開）: | 10V |
| 漏極至源極電壓（Vdss）: | 40V |
| 描述: | MOSFET N-CH 40V 180A 2WDSON |
| 電流 - 25°C連續排水（Id）: | 36A (Ta), 180A (Tc) |
| Email: | [email protected] |
