購買 BLC160J901B4C與BYCHPS
購買即有保證

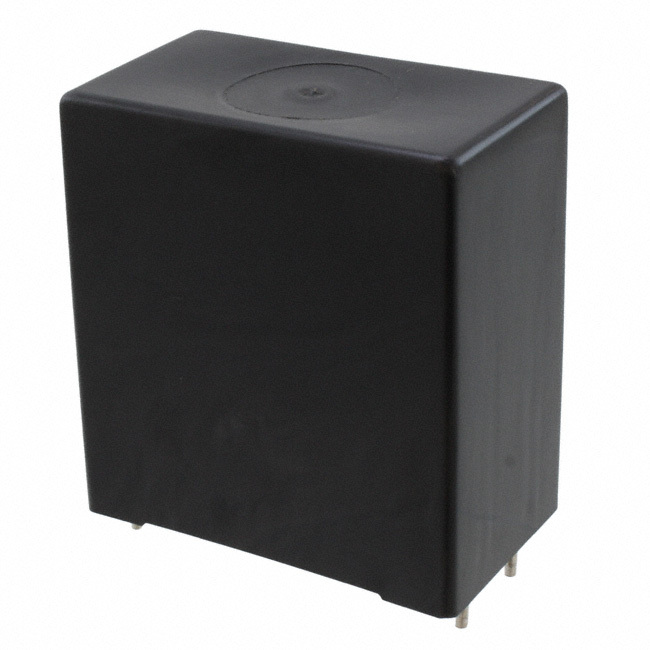

BLC160J901B4C
- 型號:
- BLC160J901B4C
- 描述:
- CAP FILM 16UF 5% 900VDC RAD 4LD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18168 Pieces
簡單介紹
BYCHIPS是 BLC160J901B4C的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的BLC160J901B4C購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 900V |
|---|---|
| 額定電壓 - AC: | 230V |
| 公差: | ±5% |
| 終止: | PC Pins |
| 尺寸/尺寸: | 1.634" L x 0.945" W (41.50mm x 24.00mm) |
| 系列: | BLC |
| 封装: | Bulk |
| 封裝/箱體: | Radial - 4 Leads |
| 其他名稱: | 338-3386 |
| 工作溫度: | -45°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | BLC160J901B4C |
| 引線間距: | 1.476" (37.50mm) |
| 高度 - 座高（最大）: | 1.732" (44.00mm) |
| 特徵: | - |
| 展開說明: | 16µF ±5% Film Capacitor 230V 900V Polypropylene (PP), Metallized Radial - 4 Leads |
| ESR（等效串聯電阻）: | 3.9 mOhm |
| 絕緣材料: | Polypropylene (PP), Metallized |
| 描述: | CAP FILM 16UF 5% 900VDC RAD 4LD |
| 電容: | 16µF |
| 應用: | DC Link, DC Filtering |
| Email: | [email protected] |
