購買 APTMC120TAM33CTPAG與BYCHPS
購買即有保證

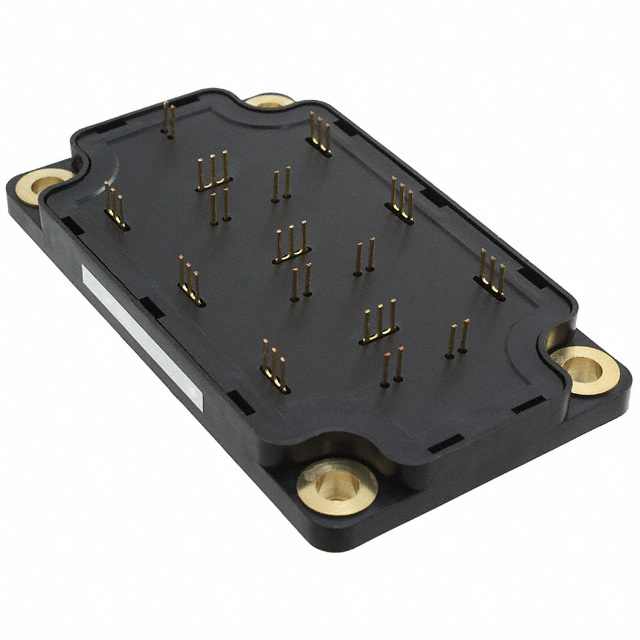

APTMC120TAM33CTPAG
- 型號:
- APTMC120TAM33CTPAG
- 製造商:
- Microsemi
- 描述:
- MOSFET 6N-CH 1200V 78A SP6-P
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17736 Pieces
簡單介紹
BYCHIPS是 APTMC120TAM33CTPAG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的APTMC120TAM33CTPAG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.2V @ 3mA (Typ) |
|---|---|
| 供應商設備封裝: | SP6-P |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 33 mOhm @ 60A, 20V |
| 功率 - 最大: | 370W |
| 封装: | Bulk |
| 封裝/箱體: | SP6 |
| 其他名稱: | APTMC120TAM33CTPACC6543 |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 22 Weeks |
| 製造商零件編號: | APTMC120TAM33CTPAG |
| 輸入電容（Ciss）（Max）@ Vds: | 2850pF @ 1000V |
| 柵極電荷（Qg）（Max）@ Vgs: | 148nC @ 20V |
| FET型: | 6 N-Channel (3-Phase Bridge) |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 78A 370W Chassis Mount SP6-P |
| 漏極至源極電壓（Vdss）: | 1200V (1.2kV) |
| 描述: | MOSFET 6N-CH 1200V 78A SP6-P |
| 電流 - 25°C連續排水（Id）: | 78A |
| Email: | [email protected] |
