購買 APTC60AM35SCTG與BYCHPS
購買即有保證

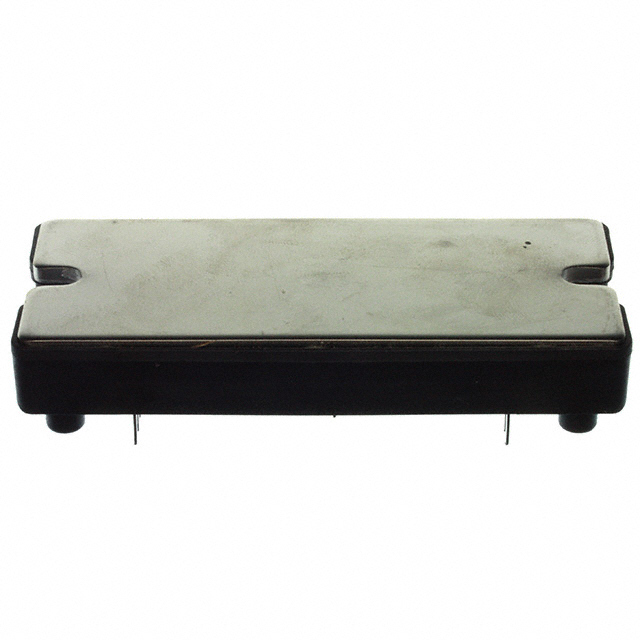

APTC60AM35SCTG
- 型號:
- APTC60AM35SCTG
- 製造商:
- Microsemi
- 描述:
- MOSFET 2N-CH 600V 72A SP4
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15486 Pieces
簡單介紹
BYCHIPS是 APTC60AM35SCTG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的APTC60AM35SCTG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 3.9V @ 2mA |
|---|---|
| 供應商設備封裝: | SP4 |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 35 mOhm @ 36A, 10V |
| 功率 - 最大: | 416W |
| 封装: | Bulk |
| 封裝/箱體: | SP4 |
| 其他名稱: | APTC60AM35SCTGMI APTC60AM35SCTGMI-ND |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 22 Weeks |
| 製造商零件編號: | APTC60AM35SCTG |
| 輸入電容（Ciss）（Max）@ Vds: | 14000pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 518nC @ 10V |
| FET型: | 2 N-Channel (Half Bridge) |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 2 N-Channel (Half Bridge) 600V 72A 416W Chassis Mount SP4 |
| 漏極至源極電壓（Vdss）: | 600V |
| 描述: | MOSFET 2N-CH 600V 72A SP4 |
| 電流 - 25°C連續排水（Id）: | 72A |
| Email: | [email protected] |
