購買 AON6200L與BYCHPS
購買即有保證

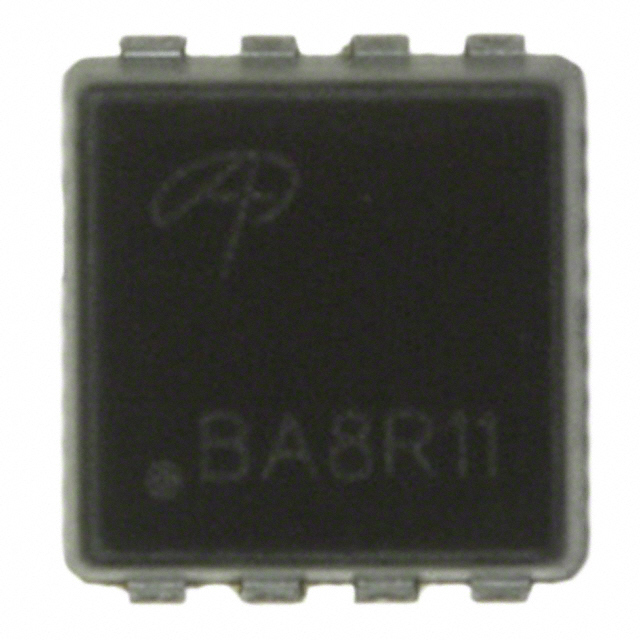

AON6200L
- 型號:
- AON6200L
- 描述:
- MOSFET N-CH 30V 13A 8DFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12112 Pieces
簡單介紹
BYCHIPS是 AON6200L的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AON6200L購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.4V @ 250µA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | 8-DFN (5x6) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 7.8 mOhm @ 20A, 10V |
| 功率耗散（最大）: | 1.95W (Ta), 35W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 8-PowerSMD, Flat Leads |
| 其他名稱: | 785-1397-2 AON6200 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | AON6200L |
| 輸入電容（Ciss）（Max）@ Vds: | 1300pF @ 15V |
| 柵極電荷（Qg）（Max）@ Vgs: | 20nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 30V 13A (Ta), 24A (Tc) 1.95W (Ta), 35W (Tc) Surface Mount 8-DFN (5x6) |
| 漏極至源極電壓（Vdss）: | 30V |
| 描述: | MOSFET N-CH 30V 13A 8DFN |
| 電流 - 25°C連續排水（Id）: | 13A (Ta), 24A (Tc) |
| Email: | [email protected] |
AON6200L的相似型號
