購買 AOD606與BYCHPS
購買即有保證
AOD606
- 型號:
- AOD606
- 描述:
- MOSFET N/P-CH 40V 8A TO252-4
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15112 Pieces
簡單介紹
BYCHIPS是 AOD606的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AOD606購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 3V @ 250µA |
|---|---|
| 供應商設備封裝: | TO-252-4L |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 33 mOhm @ 8A, 10V |
| 功率 - 最大: | 1.6W, 1.7W |
| 封装: | Tape & Reel (TR) |

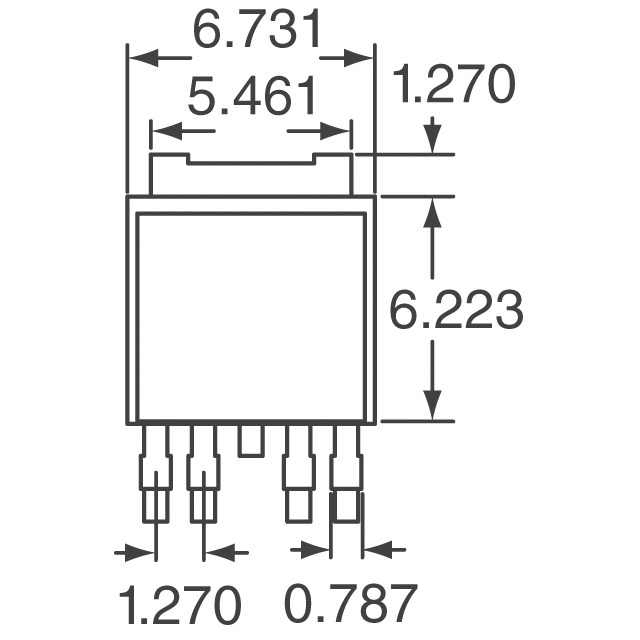

| 封裝/箱體: | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| 其他名稱: | 785-1118-2 |
| 工作溫度: | -55°C ~ 175°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | AOD606 |
| 輸入電容（Ciss）（Max）@ Vds: | 404pF @ 20V |
| 柵極電荷（Qg）（Max）@ Vgs: | 9.2nC @ 10V |
| FET型: | N and P-Channel, Common Drain |
| FET特點: | Logic Level Gate |
| 展開說明: | Mosfet Array N and P-Channel, Common Drain 40V 8A 1.6W, 1.7W Surface Mount TO-252-4L |
| 漏極至源極電壓（Vdss）: | 40V |
| 描述: | MOSFET N/P-CH 40V 8A TO252-4 |
| 電流 - 25°C連續排水（Id）: | 8A |
| Email: | [email protected] |
