購買 AOC2423與BYCHPS
購買即有保證

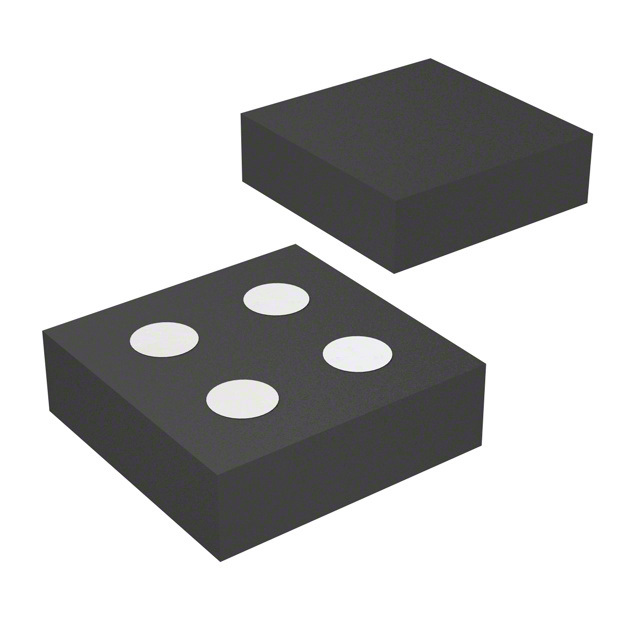

AOC2423
- 型號:
- AOC2423
- 描述:
- MOSFET P-CH 20V 2A 4WLCSP
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13056 Pieces
簡單介紹
BYCHIPS是 AOC2423的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AOC2423購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1.2V @ 250µA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | 4-AphaDFN (0.97x0.97) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 80 mOhm @ 1A, 10V |
| 功率耗散（最大）: | 600mW (Ta) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 4-XFBGA, CSPBGA |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | AOC2423 |
| 輸入電容（Ciss）（Max）@ Vds: | 470pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 10nC @ 10V |
| FET型: | P-Channel |
| FET特點: | - |
| 展開說明: | P-Channel 20V 2A (Ta) 600mW (Ta) Surface Mount 4-AphaDFN (0.97x0.97) |
| 漏極至源極電壓（Vdss）: | 20V |
| 描述: | MOSFET P-CH 20V 2A 4WLCSP |
| 電流 - 25°C連續排水（Id）: | 2A (Ta) |
| Email: | [email protected] |
