購買 AHRF450S-1.0與BYCHPS
購買即有保證

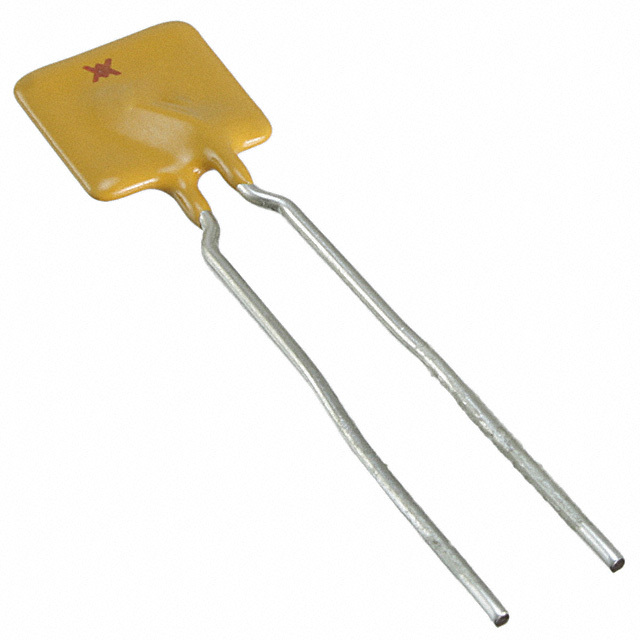

AHRF450S-1.0
- 型號:
- AHRF450S-1.0
- 製造商:
- Littelfuse
- 描述:
- POLYSWITCH PTC RESET 4.5A HOLD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15730 Pieces
簡單介紹
BYCHIPS是 AHRF450S-1.0的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AHRF450S-1.0購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 16V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 4s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.409" L x 0.118" W (10.40mm x 3.00mm) |
| 系列: | PolySwitch®, AHRF |
| 電阻 - 跳閘（R1）（最大）: | 54 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 1.7 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | AEC-Q200 |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | E56560-000 |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | AHRF450S-1.0 |
| 引線間距: | 0.200" (5.08mm) |
| 高度 - 座高（最大）: | 0.610" (15.60mm) |
| 展開說明: | PTC Resettable Fuse 16V Ih Through Hole Radial, Disc |
| 描述: | POLYSWITCH PTC RESET 4.5A HOLD |
| 電流 - 跳閘（It）: | 8.7A |
| 電流 - 最大: | 100A |
| 電流 - 維持（Ih）（最大值）: | 4.5A |
| 認證: | - |
| Email: | [email protected] |
