購買 AGN260A4H與BYCHPS
購買即有保證

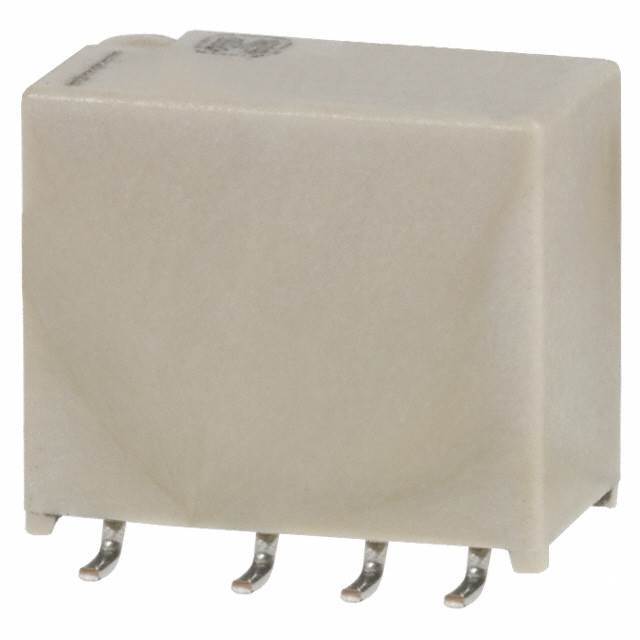

AGN260A4H
- 型號:
- AGN260A4H
- 製造商:
- Panasonic
- 描述:
- RELAY TELECOM DPDT 1A 4.5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12971 Pieces
- 數據表:
- AGN260A4H.pdf
簡單介紹
BYCHIPS是 AGN260A4H的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AGN260A4H購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.6 VDC |
|---|---|
| 關閉電壓（最小）: | 0.45 VDC |
| 端接類型: | Gull Wing |
| 切換電壓: | 125VAC, 110VDC - Max |
| 系列: | AGN |
| 發布時間: | 4ms |
| 繼電器類型: | Telecom |
| 封装: | Tube |
| 其他名稱: | 255-2612 |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 4ms |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 4 (72 Hours) |
| 製造商標準交貨期: | 19 Weeks |
| 製造商零件編號: | AGN260A4H |
| 特徵: | - |
| 展開說明: | Telecom Relay DPDT (2 Form C) Surface Mount |
| 描述: | RELAY TELECOM DPDT 1A 4.5V |
| 觸點額定值（電流）: | 1A |
| 觸點材料: | Silver Palladium (AgPd), Gold (Au) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 4.5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 202.5 Ohms |
| 線圈功率: | 100 mW |
| 線圈電流: | 22.2mA |
| Email: | [email protected] |
