購買 9400-01Q1999與BYCHPS
購買即有保證

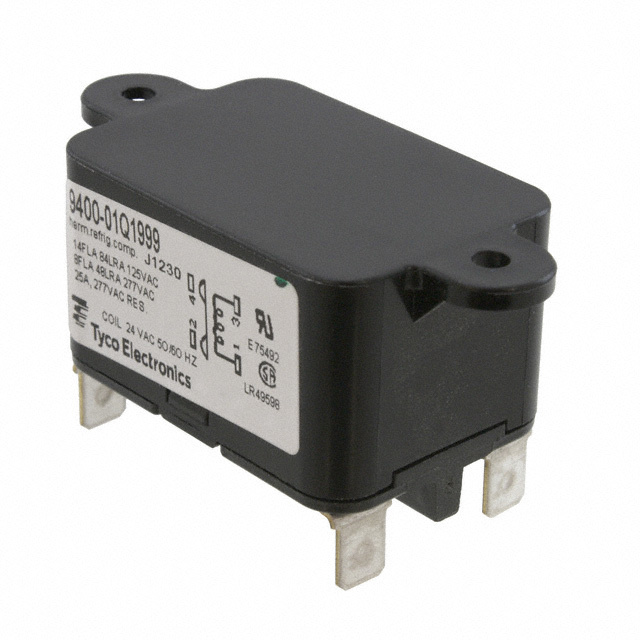

9400-01Q1999
- 型號:
- 9400-01Q1999
- 描述:
- RELAY GEN PURPOSE SPST 25A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14211 Pieces
- 數據表:
- 9400-01Q1999.pdf
簡單介紹
BYCHIPS是 9400-01Q1999的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的9400-01Q1999購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 20.4 VAC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Quick Connect - 0.250" (6.3mm) |
| 切換電壓: | 277VAC - Max |
| 系列: | 9400, Products Unlimited |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 2-1611750-5 2-1611750-5-ND 216117505 9400-01Q1999-ND PB1650 |
| 工作溫度: | -40°C ~ 65°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 6 Weeks |
| 製造商零件編號: | 9400-01Q1999 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay SPST-NO (1 Form X) 24VAC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE SPST 25A 24V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | Silver Alloy |
| 聯繫表: | SPST-NO (1 Form X) |
| 線圈電壓: | 24VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | - |
| 線圈功率: | 4 VA |
| Email: | [email protected] |
