購買 744862180與BYCHPS
購買即有保證

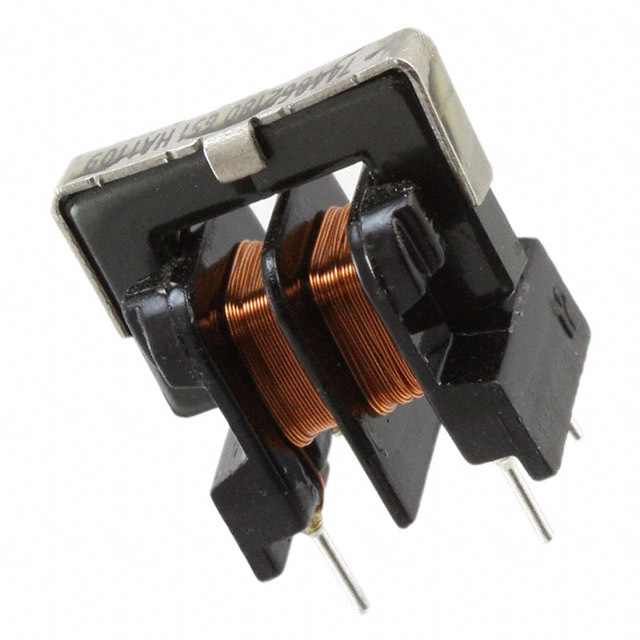

744862180
- 型號:
- 744862180
- 描述:
- CMC 18MH 300MA 2LN TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14246 Pieces
- 數據表:
- 744862180.pdf
簡單介紹
BYCHIPS是 744862180的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的744862180購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | 400V |
| 尺寸/尺寸: | 0.669" L x 0.433" W (17.00mm x 11.00mm) |
| 系列: | WE-TFC |
| 評級: | - |
| 封装: | Tube |
| 封裝/箱體: | Vertical, 4 PC Pin |
| 其他名稱: | 732-3144 732-3144-5 732-3144-5-ND |
| 工作溫度: | -40°C ~ 125°C |
| 行數: | 2 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | 744862180 |
| 電感@頻率: | 18mH @ 10kHz |
| 頻率對應阻抗: | - |
| 高度（最大）: | 0.669" (17.00mm) |
| 過濾器類型: | Power Line |
| 特徵: | - |
| 展開說明: | 18mH @ 10kHz 2 Line Common Mode Choke Through Hole 300mA DCR 3.1 Ohm |
| 描述: | CMC 18MH 300MA 2LN TH |
| 直流電阻（DCR）（最大值）: | 3.1 Ohm |
| 卡厚度（mm）: | 300mA |
| 認證: | - |
| Email: | [email protected] |
