購買 74408943101與BYCHPS
購買即有保證

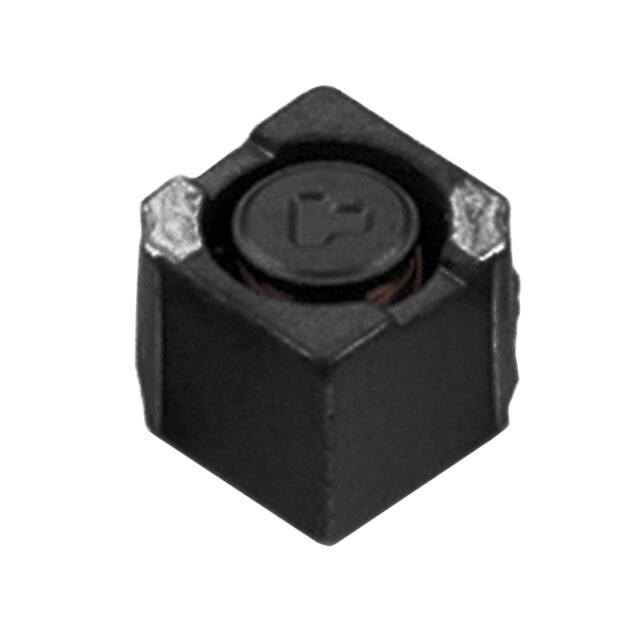

74408943101
- 型號:
- 74408943101
- 描述:
- FIXED IND 100UH 520MA 850 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17220 Pieces
- 數據表:
- 74408943101.pdf
簡單介紹
BYCHIPS是 74408943101的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的74408943101購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| 屏蔽: | Shielded |
| 系列: | WE-SPC |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 732-3038-2 |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | 74408943101 |
| 電感: | 100µH |
| 高度 - 座高（最大）: | 0.161" (4.10mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | 7.8MHz |
| 展開說明: | 100µH Shielded Wirewound Inductor 520mA 850 mOhm Max Nonstandard |
| 描述: | FIXED IND 100UH 520MA 850 MOHM |
| 直流電阻（DCR）: | 850 mOhm Max |
| 目前評級: | 520mA |
| 電流 - 飽和: | 680mA |
| Email: | [email protected] |
