購買 4SW180M與BYCHPS
購買即有保證

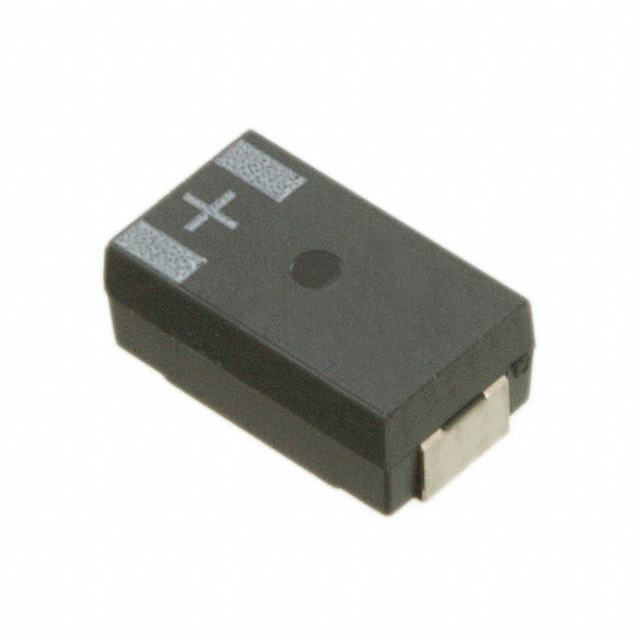

4SW180M
- 型號:
- 4SW180M
- 製造商:
- Rubycon
- 描述:
- CAP ALUM POLY 180UF 20% 4V SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13907 Pieces
- 數據表:
- 4SW180M.pdf
簡單介紹
BYCHIPS是 4SW180M的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的4SW180M購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 4V |
|---|---|
| 類型: | Polymer |
| 公差: | ±20% |
| 表面貼裝佔地面積: | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| 尺寸/尺寸: | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| 系列: | PC-CON, SW |
| 波紋電流 - 低頻: | - |
| 紋波電流 - 高頻: | 3.5A @ 100kHz |
| 封装: | Original-Reel® |
| 封裝/箱體: | 2917 (7343 Metric) |
| 其他名稱: | 1189-1636-6 |
| 工作溫度: | -55°C ~ 105°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商零件編號: | 4SW180M |
| 壽命@溫度。: | 2000 Hrs @ 105°C |
| 引線間距: | - |
| 阻抗: | - |
| 高度 - 座高（最大）: | 0.114" (2.90mm) |
| 展開說明: | 180µF ±20% 4V Aluminum Polymer Capacitor 2917 (7343 Metric) 9 mOhm 2000 Hrs @ 105°C |
| ESR（等效串聯電阻）: | 9 mOhm |
| 描述: | CAP ALUM POLY 180UF 20% 4V SMD |
| 電容: | 180µF |
| 應用: | - |
| Email: | [email protected] |
4SW180M的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
EEF-CD1C8R2R | Panasonic Electronic Components | CAP ALUM POLY 8.2UF 20% 16V SMD | 在線詢價 |
 |
RS80G561MDNASQ | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 在線詢價 |
 |
94SVP226X0025F8 | Vishay Sprague | CAP ALUM POLY 22UF 20% 25V SMD | 在線詢價 |
 |
RF80E101MDN1JT | Nichicon | CAP ALUM POLY 100UF 20% 2.5V T/H | 在線詢價 |
 |
2SWZ270M1.9X7.3 | Rubycon | CAP ALUM POLY 270UF 20% 2V SMD | 在線詢價 |
 |
16SEPC150MD+S | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 16V T/H | 在線詢價 |
 |
EEH-ZC1J680V | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 63V SMD | 在線詢價 |
|
4SW180M2.9X7.3 | Rubycon | CAP ALUM POLY 180UF 20% 4V SMD | 在線詢價 |
 |
PCF1C3R3MCL1GB | Nichicon | CAP ALUM POLY 3.3UF 20% 16V SMD | 在線詢價 |
 |
337AVG025MFBJ | Illinois Capacitor | CAP ALUM POLY 330UF 20% 25V T/H | 在線詢價 |
 |
APXH4R0ARA221MH70G | United Chemi-Con | CAP ALUM POLY 220UF 20% 4V SMD | 在線詢價 |
 |
APXE160ARA101MF80G | United Chemi-Con | CAP ALUM POLY 100UF 20% 16V SMD | 在線詢價 |
 |
RNU0E272MDN1 | Nichicon | CAP ALUM POLY 2700UF 2.5V T/H | 在線詢價 |
|
RS80J561MDN1 | Nichicon | CAP ALUM POLY 560UF 20% 6.3V T/H | 在線詢價 |
