購買 4201-003LF與BYCHPS
購買即有保證

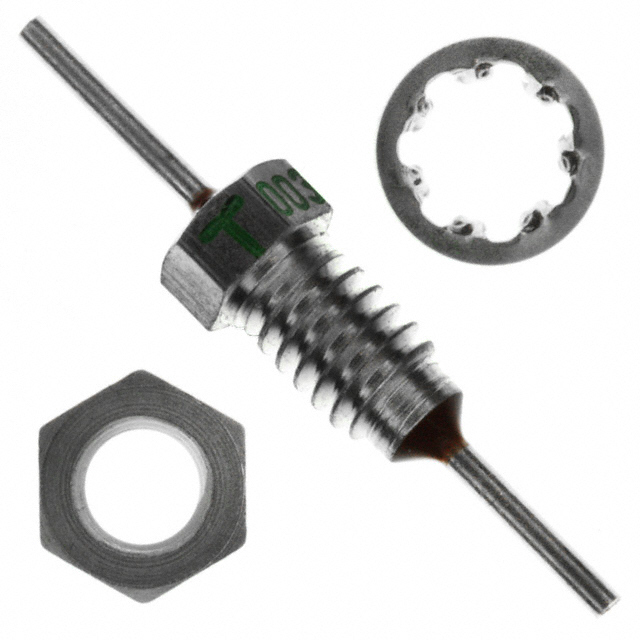

4201-003LF
- 型號:
- 4201-003LF
- 描述:
- FILTER LC(PI) 2000PF CHASSIS
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14241 Pieces
簡單介紹
BYCHIPS是 4201-003LF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的4201-003LF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 100V |
|---|---|
| 值: | C = 2000pF |
| 類型: | Low Pass |
| 技術: | LC (Pi) |
| 尺寸/尺寸: | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) |
| 系列: | 4200 |
| 電阻 - 通道（歐姆）: | - |
| 封装: | Bulk |
| 封裝/箱體: | Axial, Bushing |
| 其他名稱: | 410-1069 4201003LF |
| 工作溫度: | -55°C ~ 125°C |
| 通道數: | 1 |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | 4201-003LF |
| 高度: | - |
| 濾波器階: | 3rd |
| 展開說明: | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 2000pF 15A Axial, Bushing |
| ESD保護: | No |
| 描述: | FILTER LC(PI) 2000PF CHASSIS |
| 當前: | 15A |
| 中心/截止頻率: | - |
| 衰減值: | 38dB @ 100MHz |
| 應用: | Data Lines for Mobile Devices |
| Email: | [email protected] |
