購買 2SC3507與BYCHPS
購買即有保證

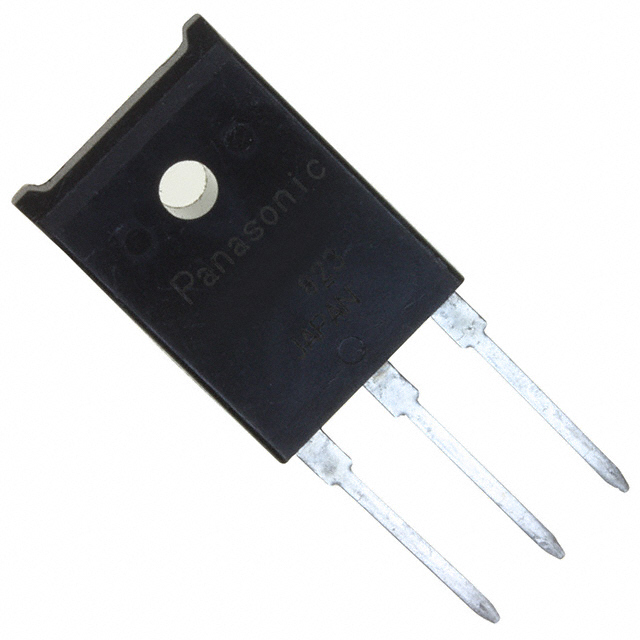

2SC3507
- 型號:
- 2SC3507
- 製造商:
- Panasonic
- 描述:
- TRANS NPN 800V 5A TOP-3F
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18045 Pieces
- 數據表:
- 2SC3507.pdf
簡單介紹
BYCHIPS是 2SC3507的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2SC3507購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 800V |
|---|---|
| Vce飽和（最大）@ IB，IC: | 1.5V @ 600mA, 3A |
| 晶體管類型: | NPN |
| 供應商設備封裝: | TOP-3F-A1 |
| 系列: | - |
| 功率 - 最大: | 3W |
| 封装: | Bulk |
| 封裝/箱體: | TOP-3F |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | 2SC3507 |
| 頻率 - 轉換: | 6MHz |
| 展開說明: | Bipolar (BJT) Transistor NPN 800V 5A 6MHz 3W Through Hole TOP-3F-A1 |
| 描述: | TRANS NPN 800V 5A TOP-3F |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 6 @ 3A, 5V |
| 電流 - 集電極截止（最大）: | 50µA (ICBO) |
| 電流 - 集電極（Ic）（最大）: | 5A |
| Email: | [email protected] |
