購買 2R5SVPC560M與BYCHPS
購買即有保證

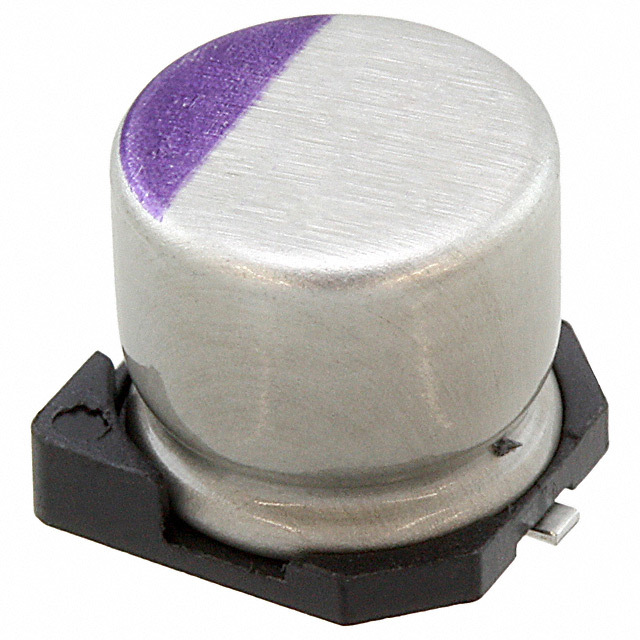

2R5SVPC560M
- 型號:
- 2R5SVPC560M
- 製造商:
- Panasonic
- 描述:
- CAP ALUM POLY 560UF 20% 2.5V SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12659 Pieces
簡單介紹
BYCHIPS是 2R5SVPC560M的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2R5SVPC560M購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 2.5V |
|---|---|
| 類型: | Polymer |
| 公差: | ±20% |
| 表面貼裝佔地面積: | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| 尺寸/尺寸: | 0.248" Dia (6.30mm) |
| 系列: | OS-CON™, SVPC |
| 波紋電流 - 低頻: | 175mA @ 120Hz |
| 紋波電流 - 高頻: | 3.5A @ 100kHz |
| 封装: | Original-Reel® |
| 封裝/箱體: | Radial, Can - SMD |
| 其他名稱: | P16529DKR |
| 工作溫度: | -55°C ~ 105°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | 2R5SVPC560M |
| 壽命@溫度。: | 2000 Hrs @ 105°C |
| 引線間距: | - |
| 阻抗: | - |
| 高度 - 座高（最大）: | 0.236" (6.00mm) |
| 展開說明: | 560µF ±20% 2.5V Aluminum Polymer Capacitor Radial, Can - SMD 16 mOhm 2000 Hrs @ 105°C |
| ESR（等效串聯電阻）: | 16 mOhm |
| 描述: | CAP ALUM POLY 560UF 20% 2.5V SMD |
| 電容: | 560µF |
| 應用: | - |
| Email: | [email protected] |
