購買 2N3700與BYCHPS
購買即有保證

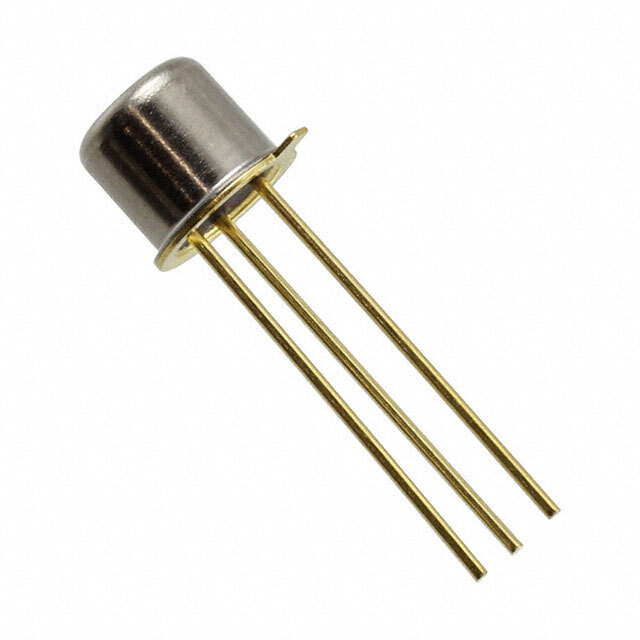

2N3700
- 型號:
- 2N3700
- 製造商:
- Microsemi
- 描述:
- TRANS NPN 80V 1A TO18
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 13119 Pieces
- 數據表:
- 2N3700.pdf
簡單介紹
BYCHIPS是 2N3700的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2N3700購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 80V |
|---|---|
| Vce飽和（最大）@ IB，IC: | 500mV @ 50mA, 500mA |
| 晶體管類型: | NPN |
| 供應商設備封裝: | TO-18 |
| 系列: | - |
| 功率 - 最大: | 500mW |
| 封装: | Bulk |
| 封裝/箱體: | TO-206AA, TO-18-3 Metal Can |
| 其他名稱: | 2N3700MS |
| 工作溫度: | -65°C ~ 200°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | 2N3700 |
| 頻率 - 轉換: | - |
| 展開說明: | Bipolar (BJT) Transistor NPN 80V 1A 500mW Through Hole TO-18 |
| 描述: | TRANS NPN 80V 1A TO18 |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 50 @ 500mA, 10V |
| 電流 - 集電極截止（最大）: | 10nA |
| 電流 - 集電極（Ic）（最大）: | 1A |
| Email: | [email protected] |
