購買 2297138與BYCHPS
購買即有保證

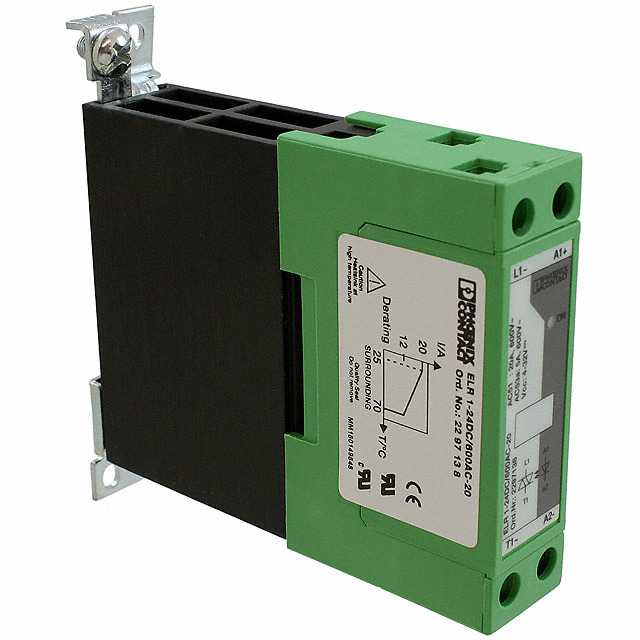

2297138
- 型號:
- 2297138
- 製造商:
- Phoenix Contact
- 描述:
- SOLID STATE 1PHASE 20A DIN 32V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19904 Pieces
- 數據表:
- 2297138.pdf
簡單介紹
BYCHIPS是 2297138的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2297138購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 負載: | 42 ~ 660 V |
|---|---|
| 電壓 - 輸入: | 4 ~ 32VDC |
| 端接類型: | Screw Terminal |
| 供應商設備封裝: | - |
| 系列: | ELR 1 |
| 繼電器類型: | Contactor |
| 封装: | Bulk |
| 封裝/箱體: | Module |
| 輸出類型: | AC, Zero Cross |
| 其他名稱: | 2297138-ND 277-4948 ELR 1-24DC/600AC-20 ELR1-24DC/600AC-20 |
| 通態電阻（最大值）: | - |
| 安裝類型: | DIN Rail |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 5 Weeks |
| 製造商零件編號: | 2297138 |
| 負載電流: | 20A |
| 展開說明: | Solid State Contactor SPST-NO (1 Form A) Module |
| 描述: | SOLID STATE 1PHASE 20A DIN 32V |
| 電路: | SPST-NO (1 Form A) |
| Email: | [email protected] |
