購買 2-1622821-3與BYCHPS
購買即有保證
2-1622821-3
- 型號:
- 2-1622821-3
- 描述:
- RES SMD 0.47 OHM 5% 1/4W 1220
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16258 Pieces
- 數據表:
- 2-1622821-3.pdf
簡單介紹
BYCHIPS是 2-1622821-3的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2-1622821-3購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 公差: | ±5% |
|---|---|
| 溫度係數: | ±350ppm/°C |
| 供應商設備封裝: | 1220 |
| 尺寸/尺寸: | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| 系列: | CRL, CGS |
| 電阻（歐姆）: | 0.47 |
| 功率（瓦特）: | 0.25W, 1/4W |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 0805 (2012 Metric) |
| 其他名稱: | CRL1220TR47J |
| 工作溫度: | -55°C ~ 125°C |
| 端子數: | 2 |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | 2-1622821-3 |
| 高度 - 座高（最大）: | 0.020" (0.50mm) |
| 特徵: | Current Sense |
| 失敗率: | - |

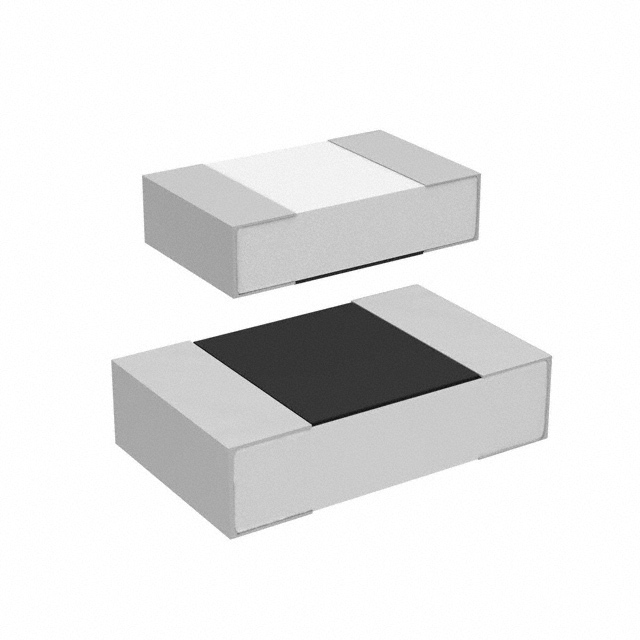

| 展開說明: | 0.47 Ohm ±5% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Current Sense Thick Film |
| 描述: | RES SMD 0.47 OHM 5% 1/4W 1220 |
| 組成: | Thick Film |
| Email: | [email protected] |
