購買 16SEPC270M與BYCHPS
購買即有保證

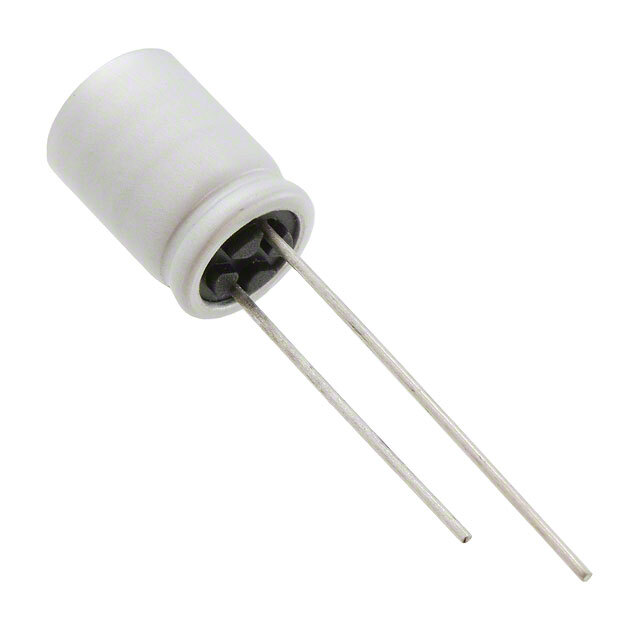

16SEPC270M
- 型號:
- 16SEPC270M
- 製造商:
- Panasonic
- 描述:
- CAP ALUM POLY 270UF 20% 16V T/H
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15928 Pieces
簡單介紹
BYCHIPS是 16SEPC270M的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的16SEPC270M購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 16V |
|---|---|
| 類型: | Polymer |
| 公差: | ±20% |
| 表面貼裝佔地面積: | - |
| 尺寸/尺寸: | 0.315" Dia (8.00mm) |
| 系列: | OS-CON™, SEPC |
| 波紋電流 - 低頻: | 250mA @ 120Hz |
| 紋波電流 - 高頻: | 5A @ 100kHz |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Can |
| 其他名稱: | P16297 |
| 工作溫度: | -55°C ~ 105°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | 16SEPC270M |
| 壽命@溫度。: | 5000 Hrs @ 105°C |
| 引線間距: | 0.138" (3.50mm) |
| 阻抗: | - |
| 高度 - 座高（最大）: | 0.472" (12.00mm) |
| 展開說明: | 270µF ±20% 16V Aluminum Polymer Capacitor Radial, Can 11 mOhm 5000 Hrs @ 105°C |
| ESR（等效串聯電阻）: | 11 mOhm |
| 描述: | CAP ALUM POLY 270UF 20% 16V T/H |
| 電容: | 270µF |
| 應用: | General Purpose |
| Email: | [email protected] |
