購買 0603L100SLYR與BYCHPS
購買即有保證

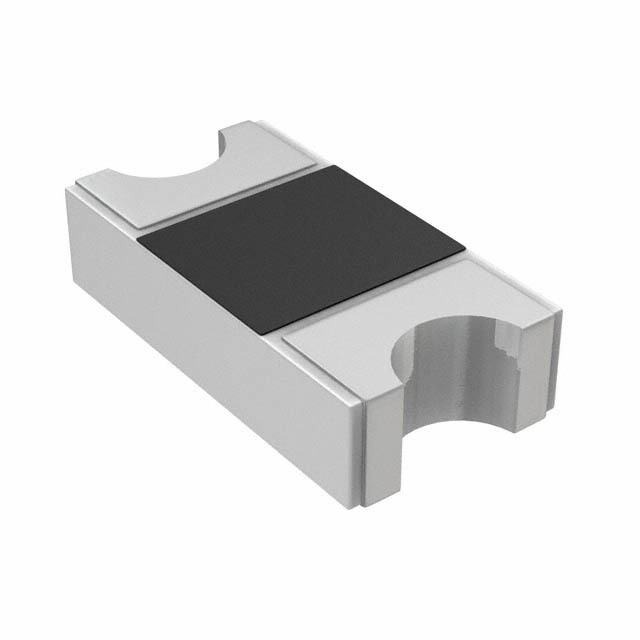

0603L100SLYR
- 型號:
- 0603L100SLYR
- 製造商:
- Littelfuse
- 描述:
- PTC RESETTABLE 6V 1A 0603
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16973 Pieces
- 數據表:
- 0603L100SLYR.pdf
簡單介紹
BYCHIPS是 0603L100SLYR的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的0603L100SLYR購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 6V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 300ms |
| 厚度（最大）: | 0.030" (0.75mm) |
| 尺寸/尺寸: | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| 系列: | POLY-FUSE®, LoRho |
| 電阻 - 跳閘（R1）（最大）: | 120 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 40 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 0603 (1608 Metric), Concave |
| 其他名稱: | F5761TR |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | 0603L100SLYR |
| 引線間距: | - |
| 高度 - 座高（最大）: | - |
| 展開說明: | PTC Resettable Fuse 6V Ih Surface Mount 0603 (1608 Metric), Concave |
| 描述: | PTC RESETTABLE 6V 1A 0603 |
| 電流 - 跳閘（It）: | 1.8A |
| 電流 - 最大: | 50A |
| 電流 - 維持（Ih）（最大值）: | 1A |
| 認證: | cURus, TUV |
| Email: | [email protected] |
