購買 MRF10031與BYCHPS
購買即有保證

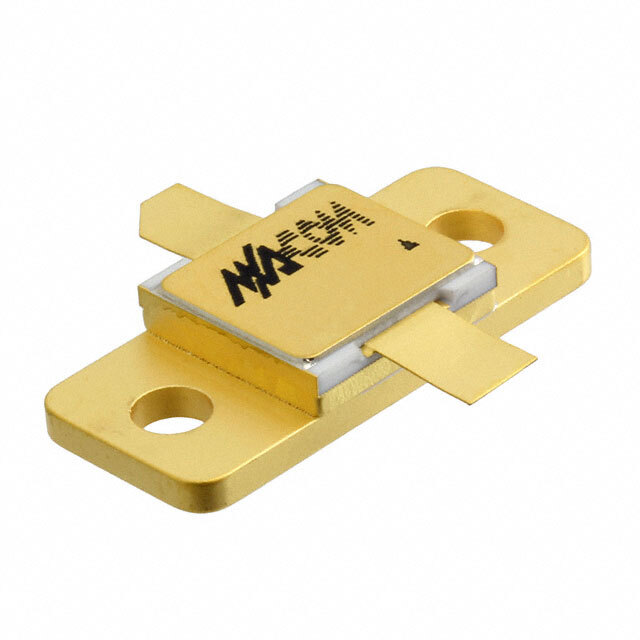

MRF10031
- 型號:
- MRF10031
- 描述:
- TRANS NPN 30W 960MHZ-1215MHZ
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18069 Pieces
- 數據表:
- MRF10031.pdf
簡單介紹
BYCHIPS是 MRF10031的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的MRF10031購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 55V |
|---|---|
| 晶體管類型: | NPN |
| 供應商設備封裝: | 332A-03, Style 2 |
| 系列: | - |
| 功率 - 最大: | 30W |
| 封装: | Tray |
| 封裝/箱體: | 332A-03 |
| 其他名稱: | 1465-1137 |
| 工作溫度: | 200°C (TJ) |
| 噪聲係數（dB典型值@頻率）: | - |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 20 Weeks |
| 製造商零件編號: | MRF10031 |
| 獲得: | 9.5dB |
| 頻率 - 轉換: | - |
| 展開說明: | RF Transistor NPN 55V 3A 30W Chassis Mount 332A-03, Style 2 |
| 描述: | TRANS NPN 30W 960MHZ-1215MHZ |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 20 @ 500mA, 5V |
| 電流 - 集電極（Ic）（最大）: | 3A |
| Email: | [email protected] |
