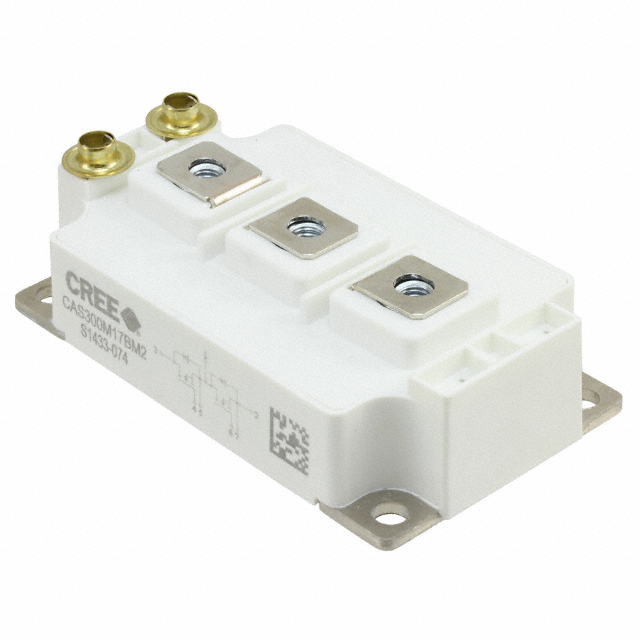

CAS300M17BM2
- 型號:
- CAS300M17BM2
- 製造商:
- Cree
- 描述:
- MOSFET 2N-CH 1700V 325A MODULE
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18853 Pieces
- 數據表:
- CAS300M17BM2.pdf
簡單介紹
BYCHIPS是 CAS300M17BM2的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的CAS300M17BM2購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.3V @ 15mA (Typ) |
|---|---|
| 供應商設備封裝: | Module |
| 系列: | Z-Rec® |
| RDS（ON）（最大值）@標識，柵極電壓: | 10 mOhm @ 225A, 20V |
| 功率 - 最大: | 1760W |
| 封装: | Tray |
| 封裝/箱體: | Module |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | CAS300M17BM2 |
| 輸入電容（Ciss）（Max）@ Vds: | 20000pF @ 1000V |
| 柵極電荷（Qg）（Max）@ Vgs: | 1076nC @ 20V |
| FET型: | 2 N-Channel (Half Bridge) |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 2 N-Channel (Half Bridge) 1700V (1.7kV) 325A 1760W Chassis Mount Module |
| 漏極至源極電壓（Vdss）: | 1700V (1.7kV) |
| 描述: | MOSFET 2N-CH 1700V 325A MODULE |
| 電流 - 25°C連續排水（Id）: | 325A |
| Email: | [email protected] |
