購買 2SC2921與BYCHPS
購買即有保證

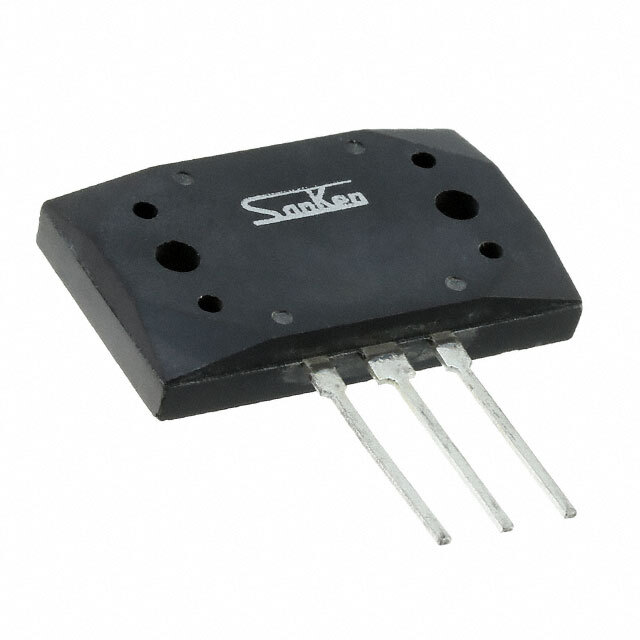

2SC2921
- 型號:
- 2SC2921
- 描述:
- TRANS NPN 160V 15A MT200
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15887 Pieces
- 數據表:
- 2SC2921.pdf
簡單介紹
BYCHIPS是 2SC2921的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2SC2921購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 160V |
|---|---|
| Vce飽和（最大）@ IB，IC: | 2V @ 500mA, 5A |
| 晶體管類型: | NPN |
| 供應商設備封裝: | MT-200 |
| 系列: | - |
| 功率 - 最大: | 150W |
| 封装: | Bulk |
| 封裝/箱體: | 3-ESIP |
| 其他名稱: | 2SC2921 DK |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | 2SC2921 |
| 頻率 - 轉換: | 60MHz |
| 展開說明: | Bipolar (BJT) Transistor NPN 160V 15A 60MHz 150W Through Hole MT-200 |
| 描述: | TRANS NPN 160V 15A MT200 |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 50 @ 5A, 4V |
| 電流 - 集電極截止（最大）: | 100µA (ICBO) |
| 電流 - 集電極（Ic）（最大）: | 15A |
| Email: | [email protected] |
